Floor Plans
ADU floor plans for Los Angeles homes.
Browse 39 ADU floor plans, from 4 studios to 4-bedroom layouts, 350 to 1,200+ sq ft. Filter by bedrooms, size or ADU type. Every plan can be adjusted to fit your lot, and our team handles the design, permits and construction.
39 plans match
Bedrooms
Size
ADU Type
All 39 ADU floor plans
-

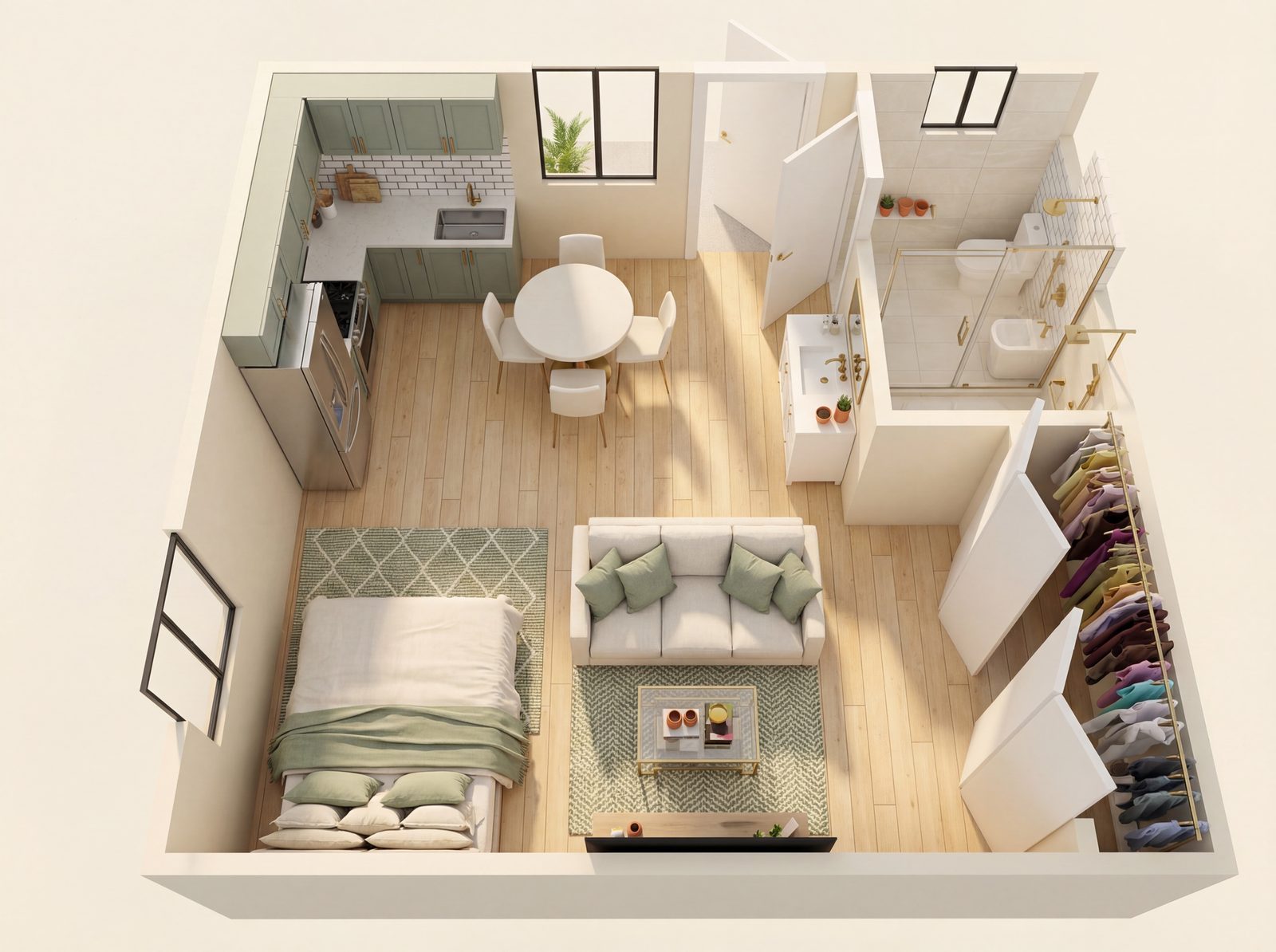

Open Studio 1
Studio 350-400 sqft 400-600 sqftWe’ve organized clearly defined living, sleeping, cooking zones so the space actually breathes. The substantial closet ensures the main room stays an uncluttered sanctuary for your guest or a long-term tenant.
Attached ADUs · Detached ADUs · Garage Conversions · +1
-

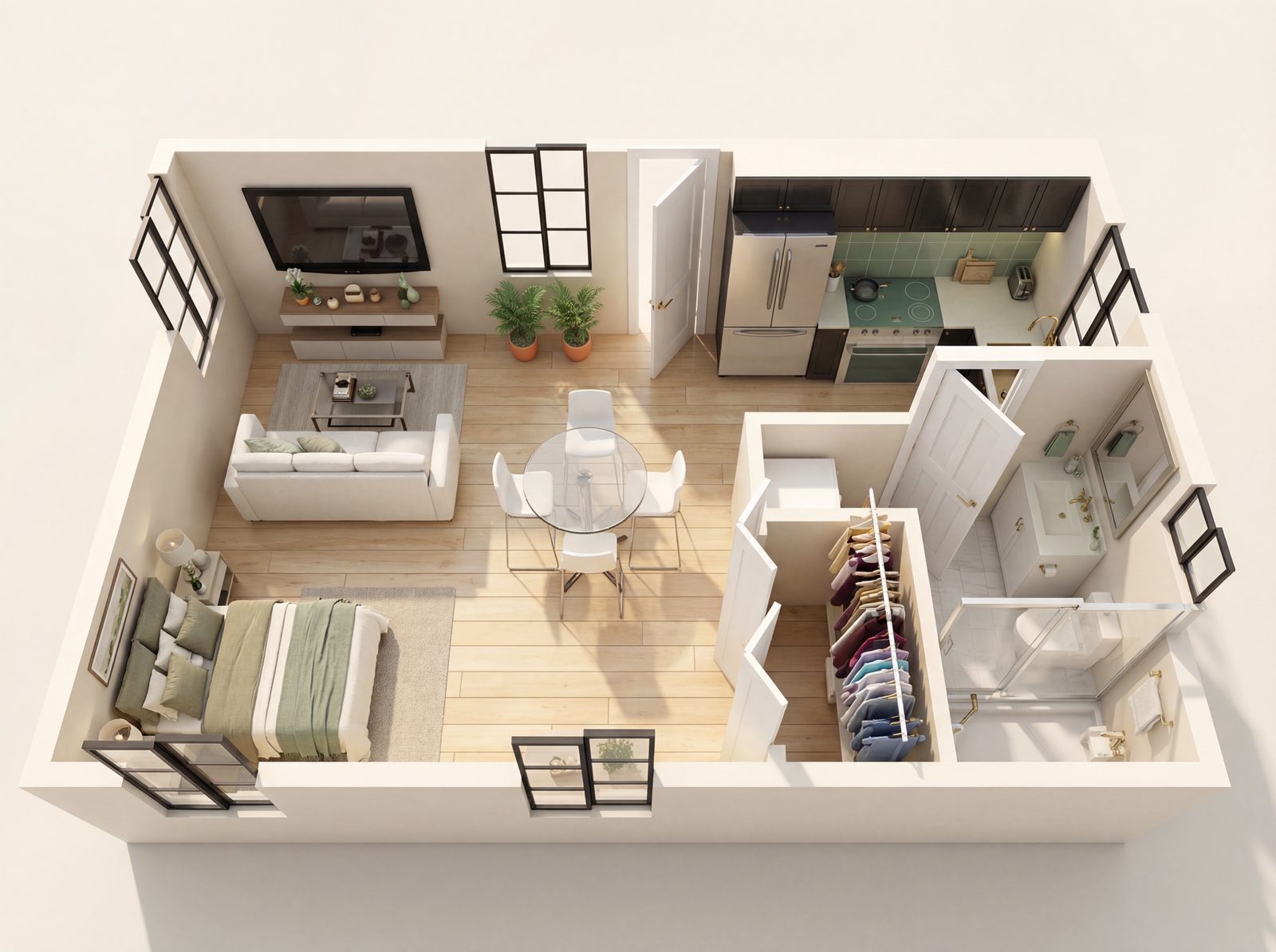

Open Studio 2
Studio 350-400 sqft 400-600 sqftA rare walk-in closet transforms this layout from a temporary crash pad into a functional, orderly home that commands higher rent from long-term tenants.
Attached ADUs · Detached ADUs · Garage Conversions · +1
-

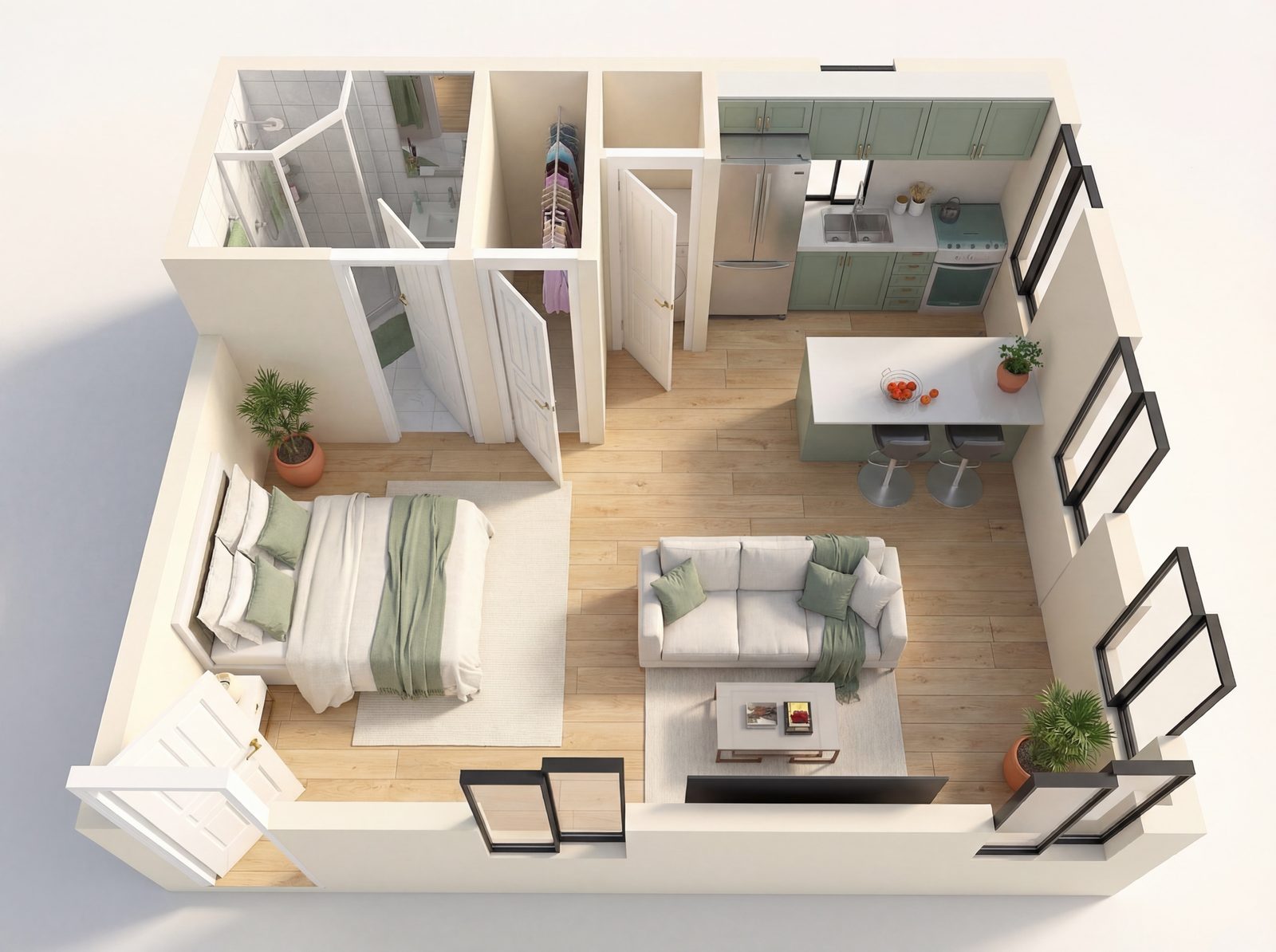

Open Studio 3
Studio 350-400 sqft 400-600 sqftIt’s rare to find an efficient studio footprint that accommodates both a walk-in closet and a generous kitchen island. This layout maximizes functionality for a high-performing rental or a very comfortable guest suite.
Attached ADUs · Detached ADUs · Garage Conversions · +1
-

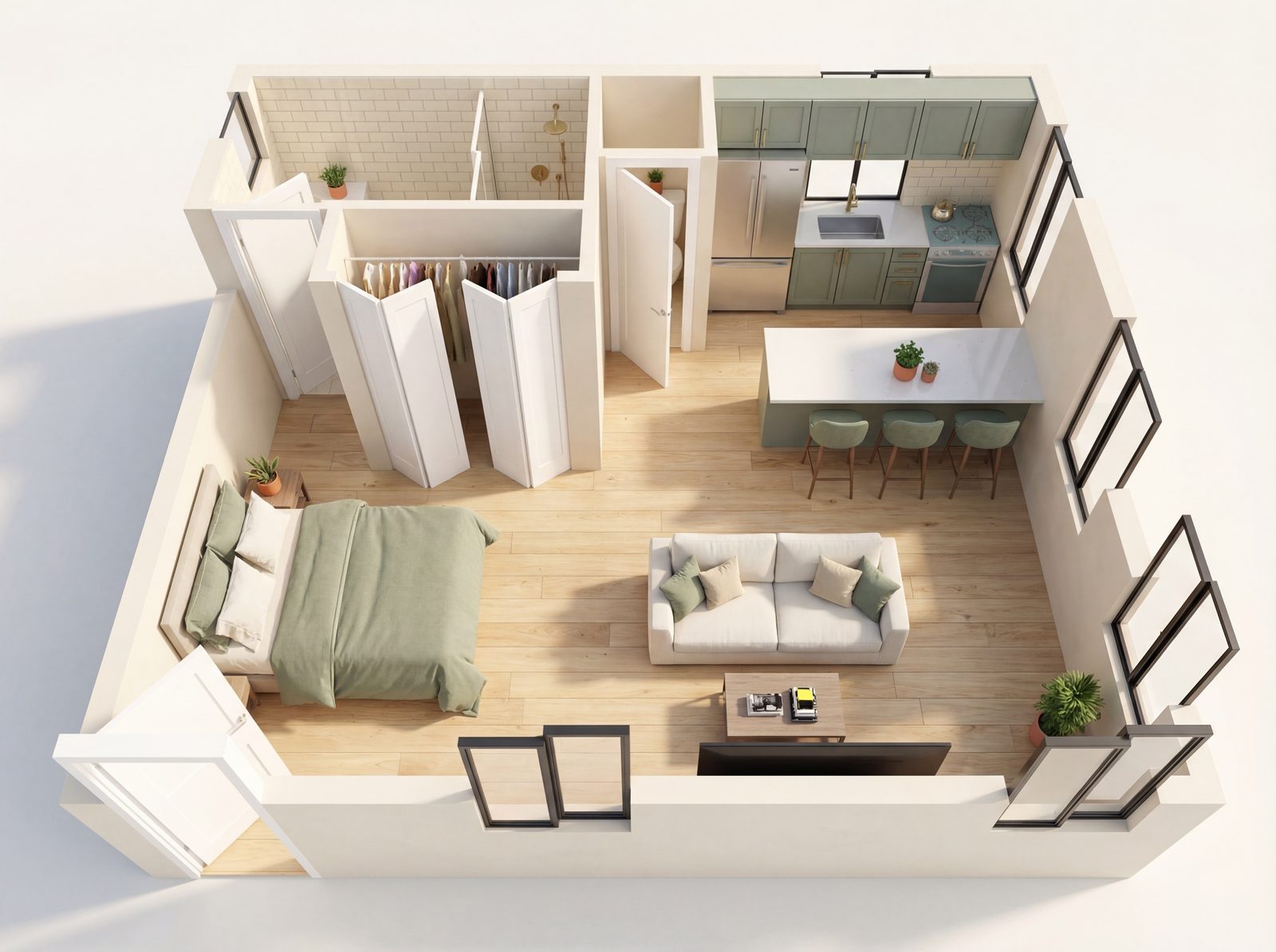

Open Studio 4
Studio 350-400 sqft 400-600 sqftThe eat-in island and substantial closet space are rare finds in a studio, turning this efficient footprint into a highly desirable long-term rental or guest suite.
Attached ADUs · Detached ADUs · Garage Conversions · +1
-

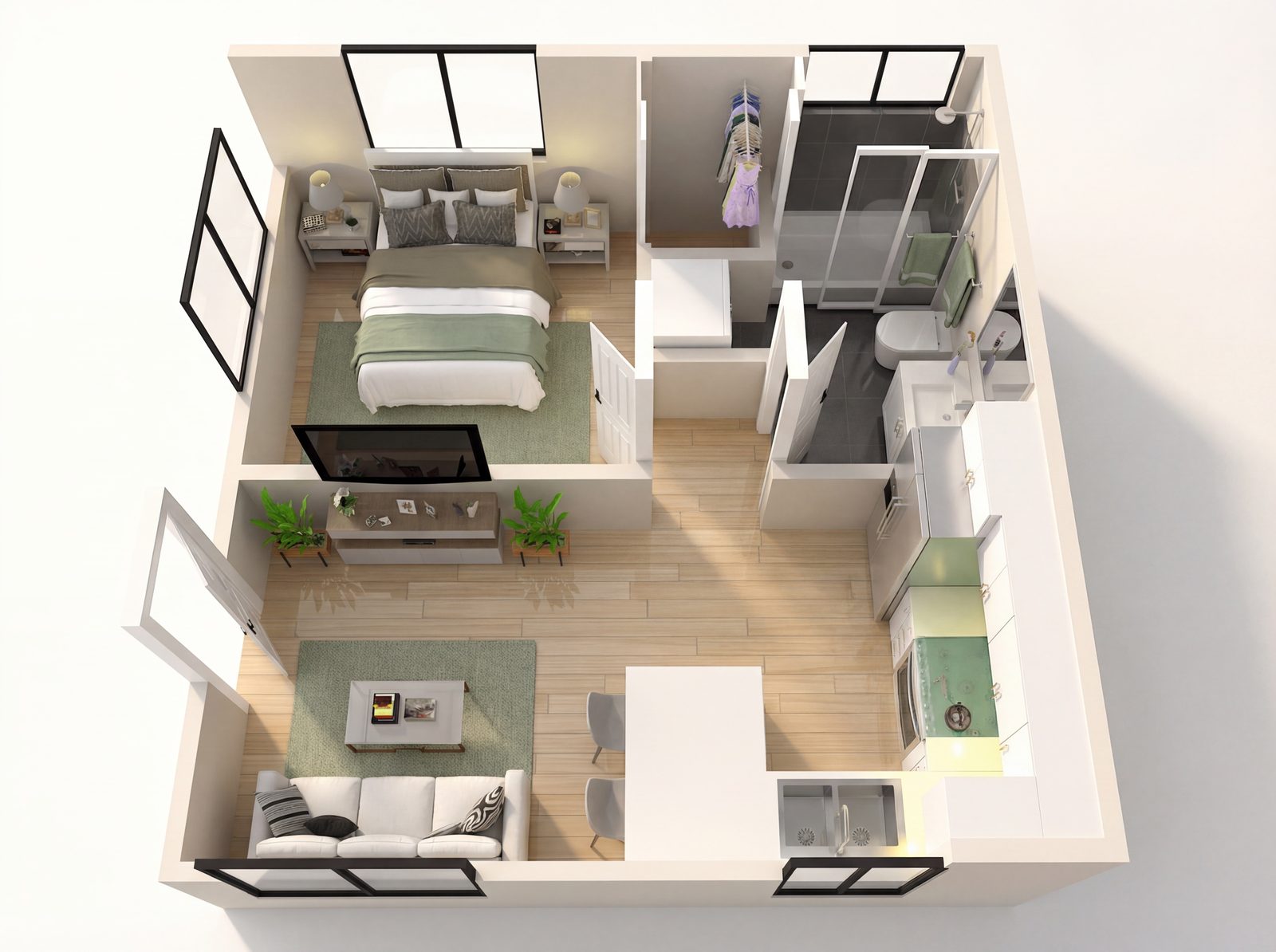

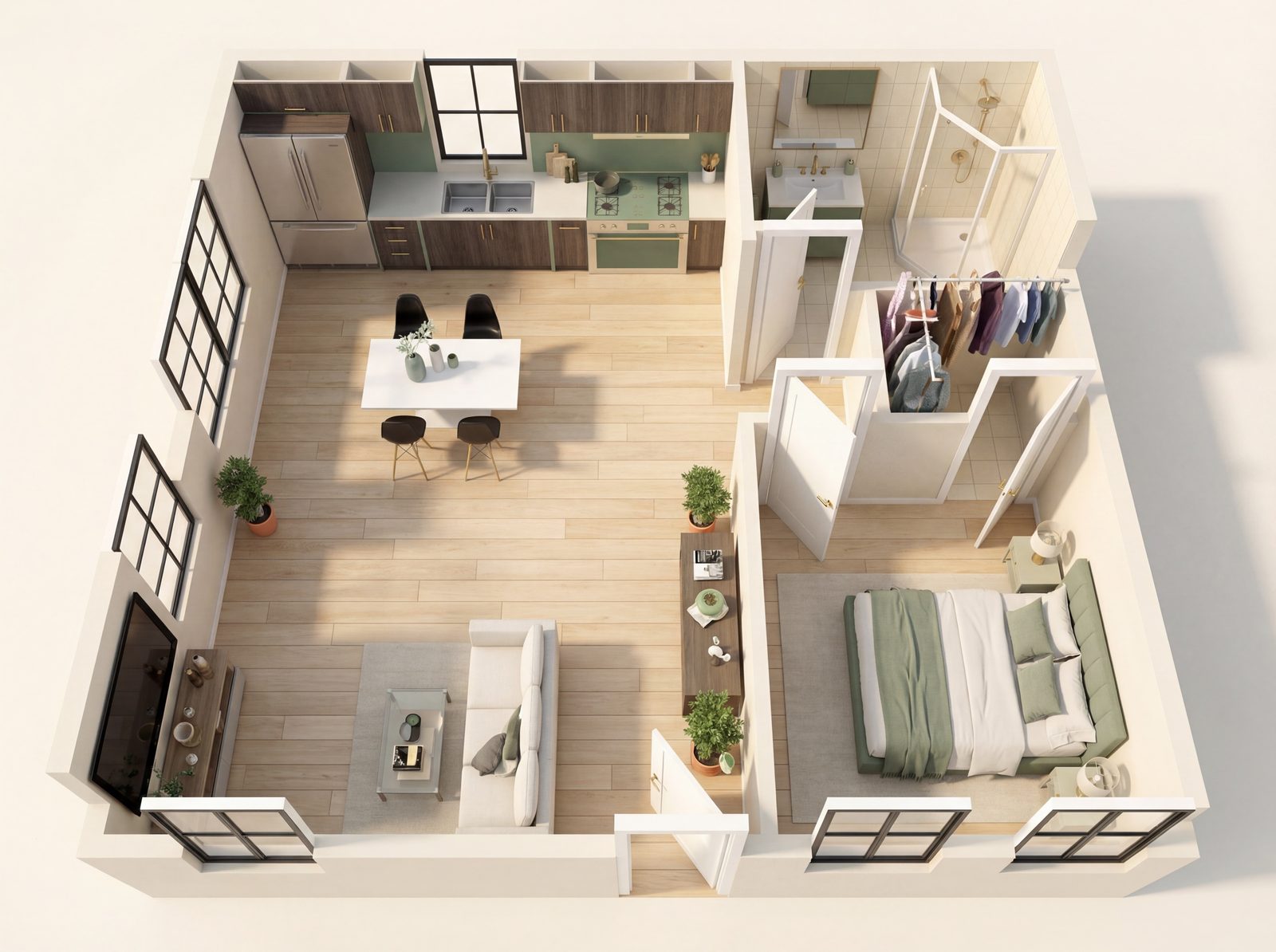

1 Bedroom
1 Bedroom 350-400 sqft 400-600 sqftNotice how the kitchen island anchors the open living space, while the walk-in closet—a rarity in this square footage—ensures this unit commands top-tier rental market value.
Attached ADUs · Garage Conversions
-
1 Bedroom
1 Bedroom 400-600 sqftThe smart hallway buffer separating the sleep and bath zones from the living area is key here; it delivers the functional privacy of a larger home within an efficient footprint.
Attached ADUs · Detached ADUs · Garage Conversions · +2
-
1 Bedroom
1 Bedroom 400-600 sqftWe optimized this square footprint to make every inch count, ensuring a generous walk-in closet and dedicated laundry stack fit without feeling cramped. It’s ideal for a long-term tenant who values independence.
Attached ADUs · Detached ADUs · Garage Conversions · +2
-
1 Bedroom – 2
1 Bedroom 400-600 sqftThe efficient footprint doesn't sacrifice functionality, delivering a distinct bedroom, ample storage, and a generous U-shaped kitchen that feels anything but compact.
Detached ADUs · Garage Conversions · Internal ADUs
-
1 Bedroom – 3
1 Bedroom 400-600 sqftThis plan masterfully balances open living space with a private retreat, featuring a substantial walkthrough closet area rarely found in this tight square footage.
Attached ADUs · Detached ADUs · Garage Conversions · +2
-

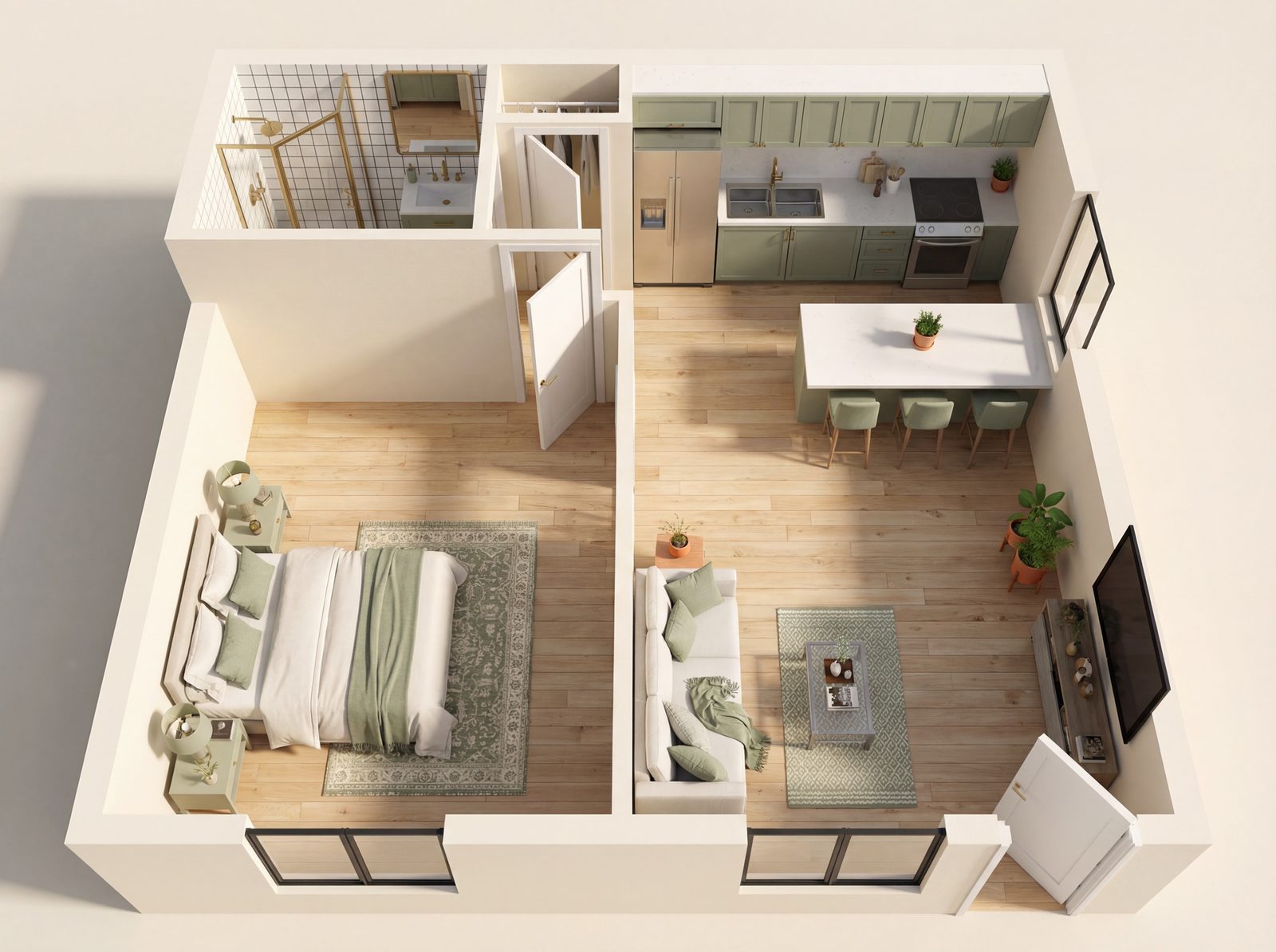

1 Bedroom – 4
1 Bedroom 400-600 sqftThe distinct separation between the private bedroom suite and the open kitchen turns a compact footprint into a highly functional home. It feels substantially larger than a studio conversion.
Attached ADUs · Detached ADUs · Garage Conversions · +2
-

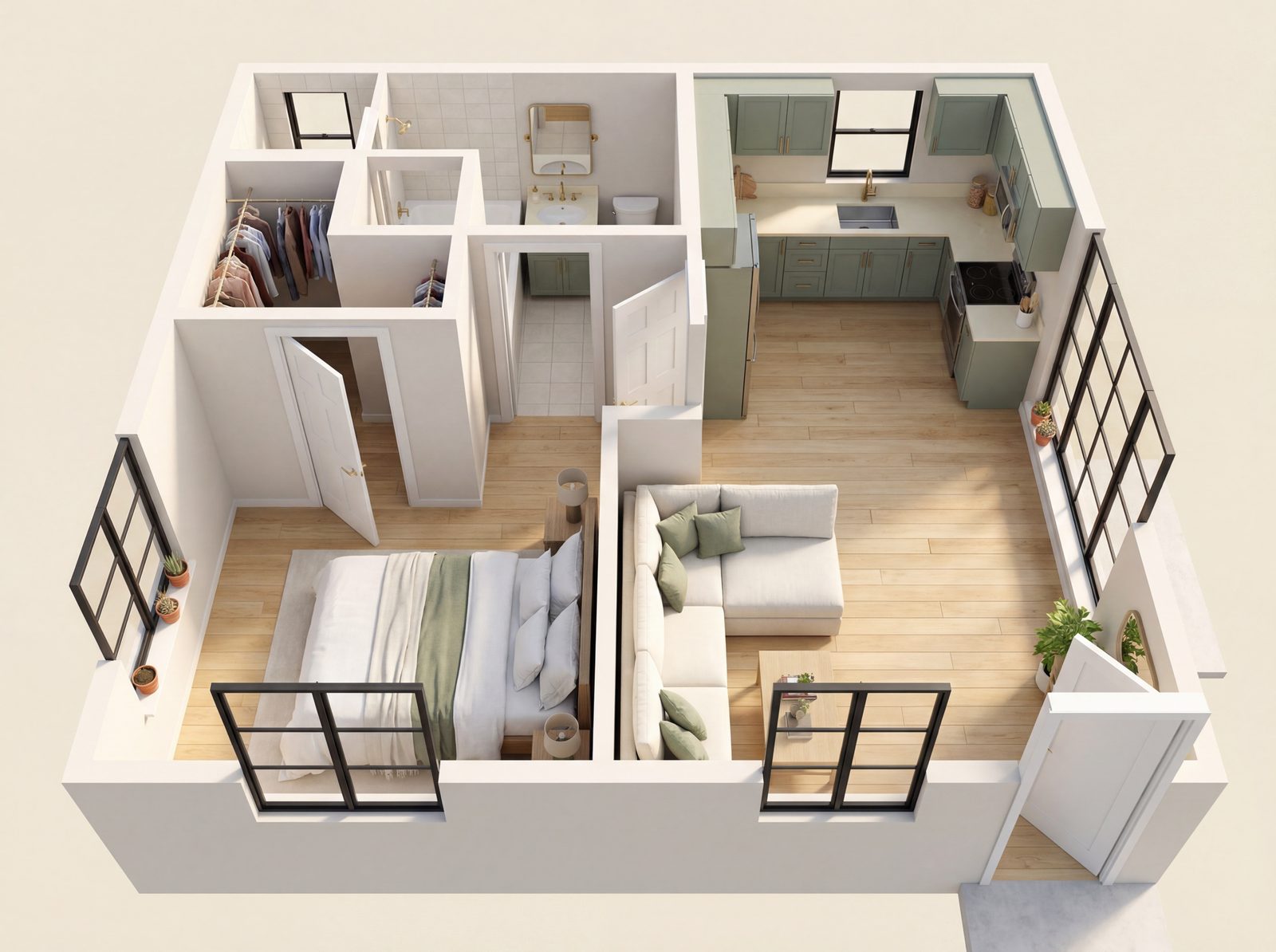

1 Bedroom – 5
1 Bedroom 400-600 sqftThis layout achieves true privacy in a compact footprint, separating sleeping and living zones efficiently. The surprise walk-in closet makes this a viable long-term home for a downsizing parent or a serious tenant.
Attached ADUs · Detached ADUs · Garage Conversions · +2
-

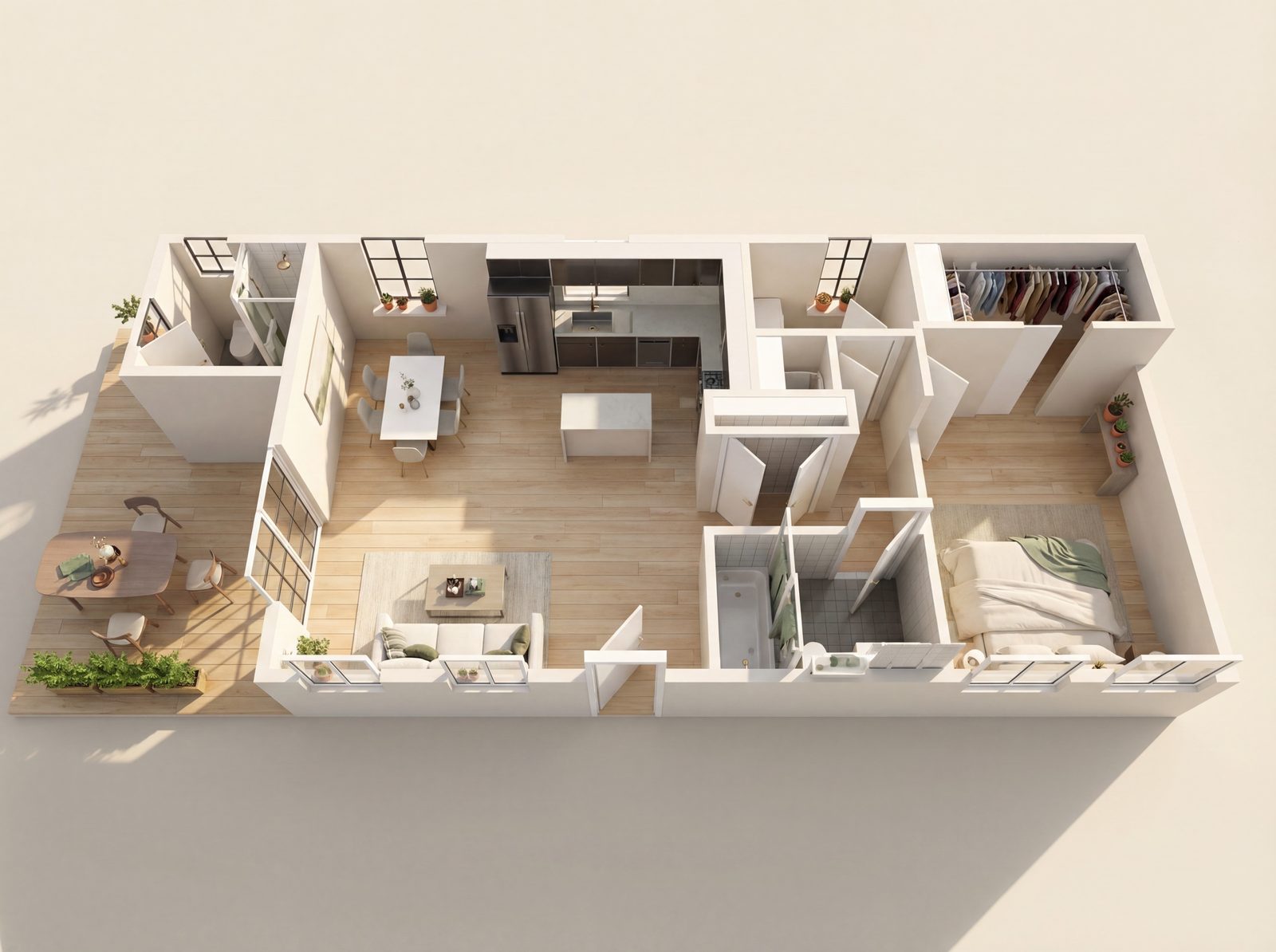

1 Bedroom – 6
1 Bedroom 400-600 sqftThe defined entryway and substantial kitchen island make this linear plan feel like a permanent residence, ensuring it commands premium long-term rental value in any LA neighborhood.
Attached ADUs · Detached ADUs · Garage Conversions · +1
-

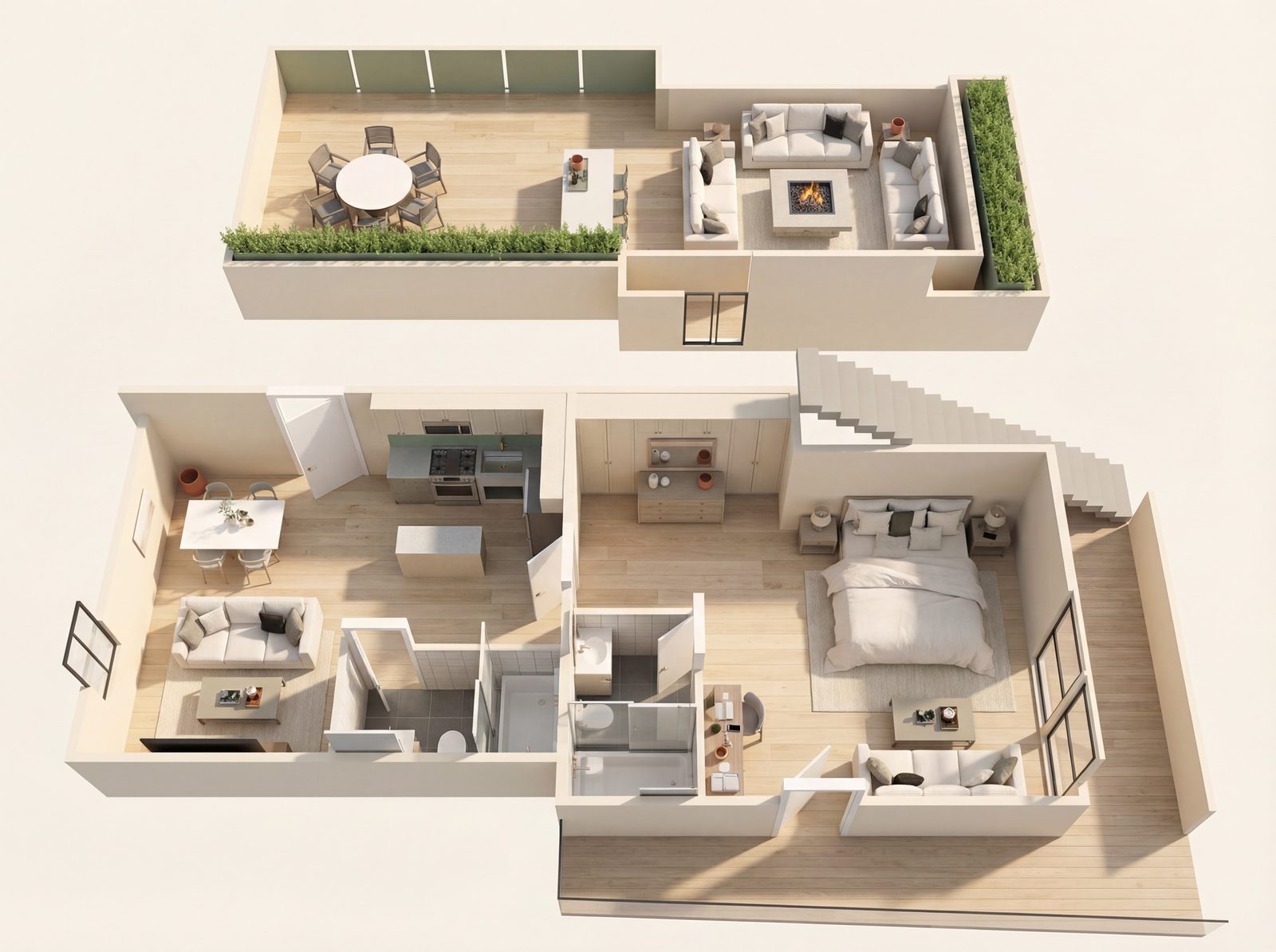

1 Bedroom With Deck
1 Bedroom 400-600 sqft 600-800 sqftThat expansive, private deck isn't just an amenity; it’s a second living room that commands premium rent in LA. This layout feels twice its actual size, attracting tenants looking for a true indoor-outdoor retreat.
Attached ADUs · Detached ADUs · Internal ADUs · +1
-
2 Bedroom
1 Bedroom 400-600 sqftThis intelligent split-plan pushes bedrooms to opposite ends, offering true acoustic privacy for roommates or two generations living together. The dual en-suite setup ensures everyone has their own distinct space without compromise.
Attached ADUs · Detached ADUs · Garage Conversions · +2
-

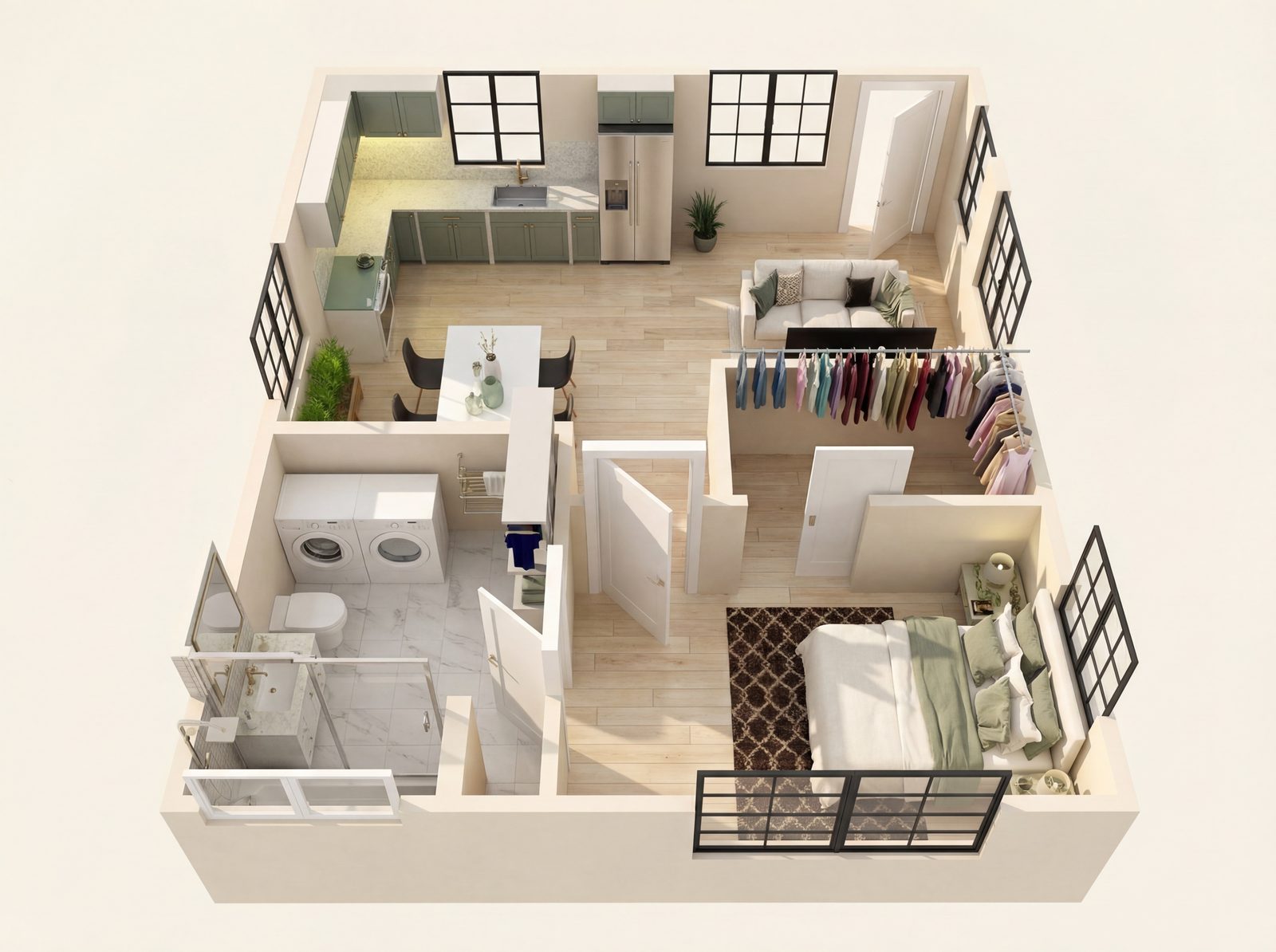

Spacious 1 Bedroom
1 Bedroom 400-600 sqftWe maximize livability here with a full U-shaped kitchen and distinct dining area, features that command premium rents for a one-bedroom unit.
Attached ADUs · Detached ADUs · Garage Conversions · +2
-
1 Bedroom
2 Bedrooms 400-600 sqft 600-800 sqft 800+ sqftThe split-bedroom configuration ensures maximum privacy between occupants, turning this into an ideal setup for two independent renters or a private suite for long-term guests.
Attached ADUs · Detached ADUs · Garage Conversions · +2
-

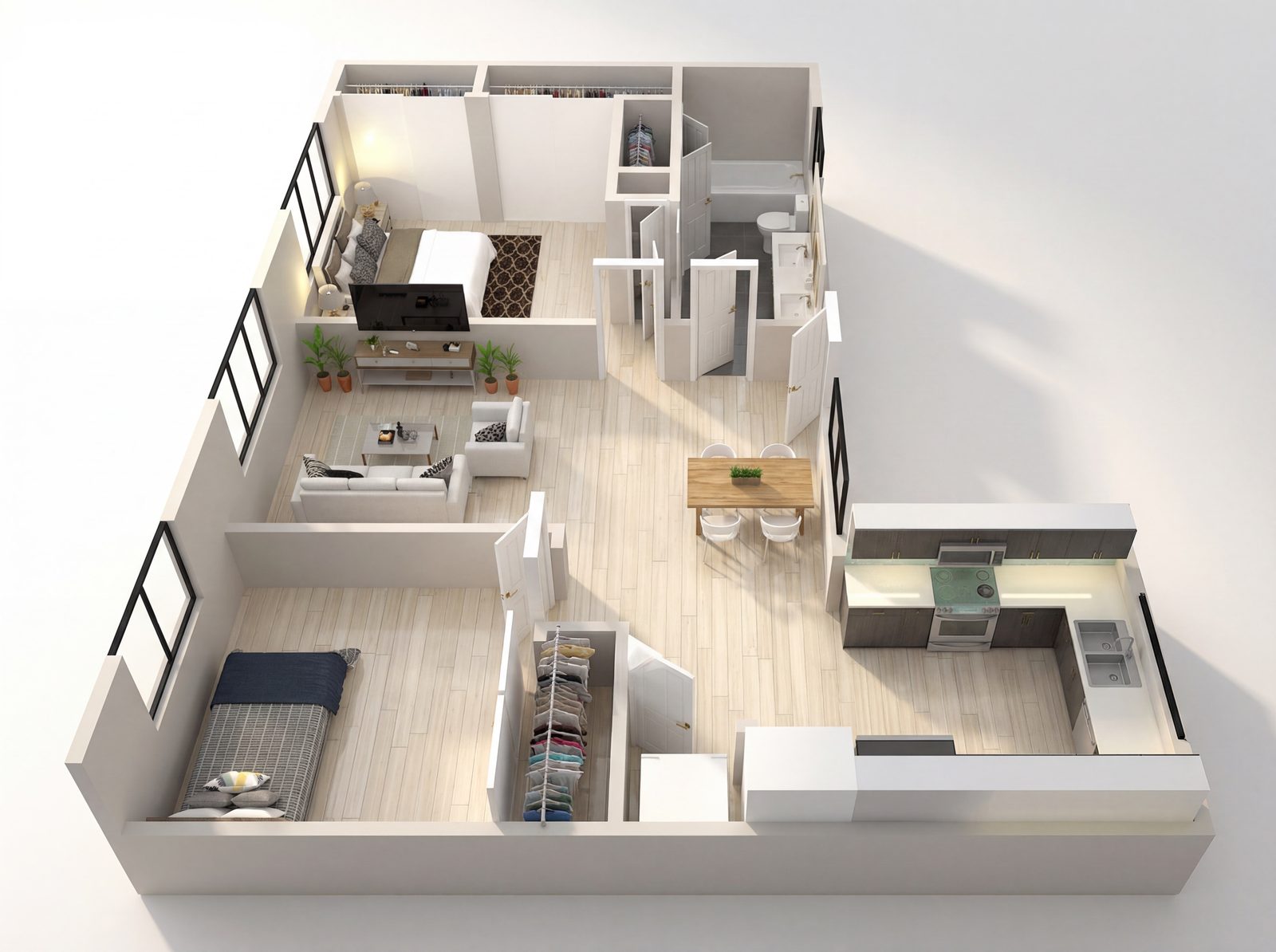

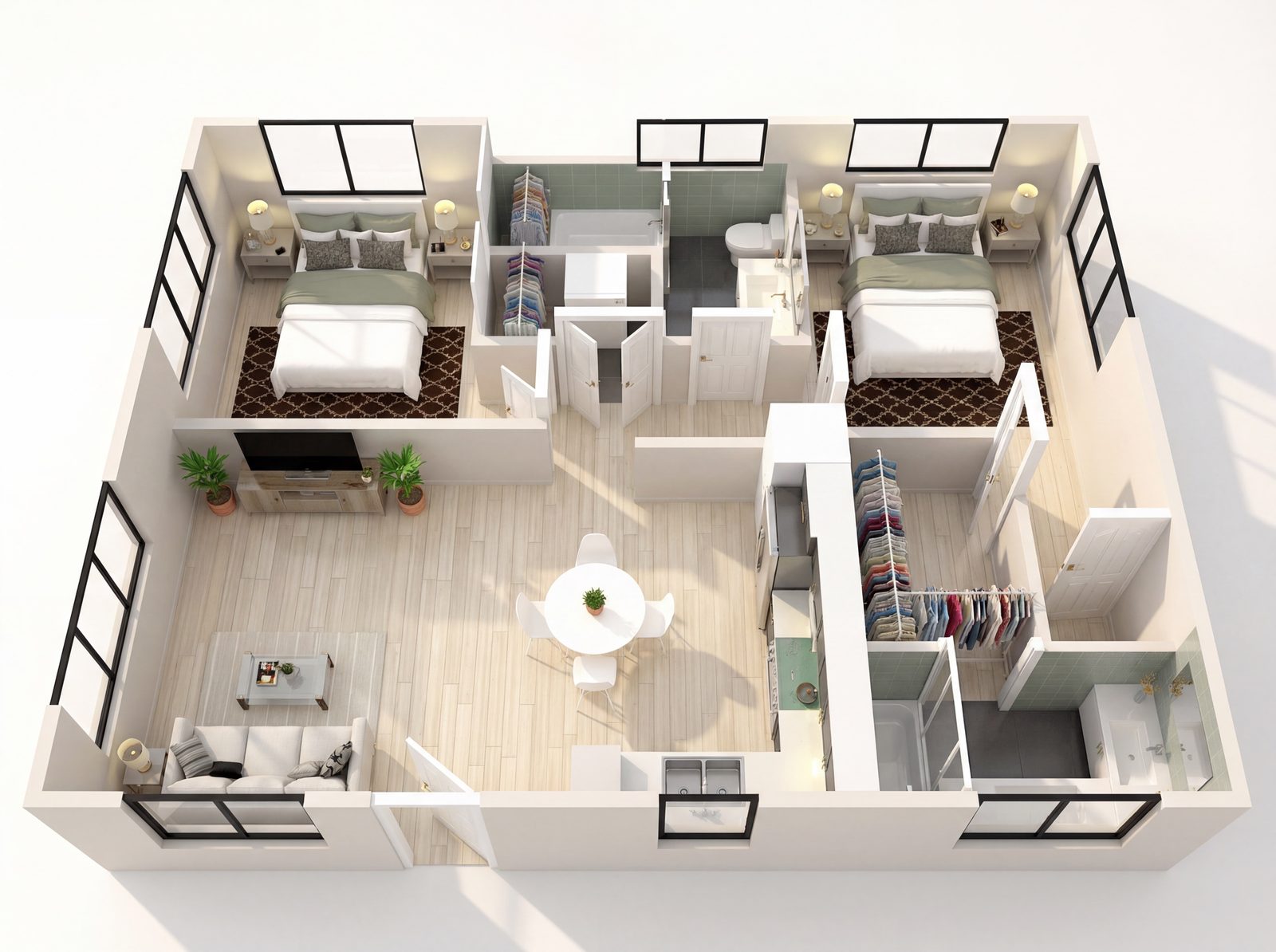

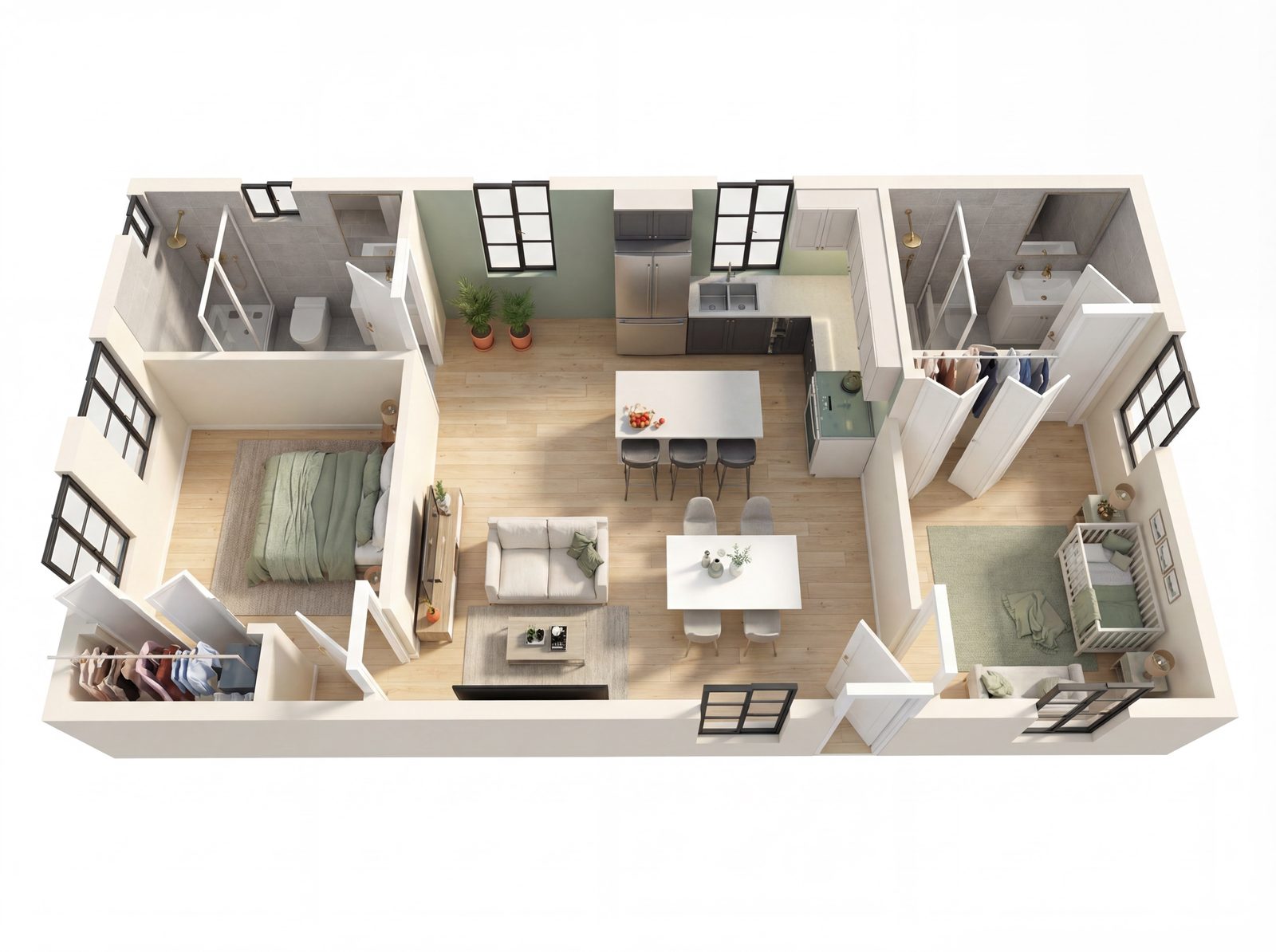

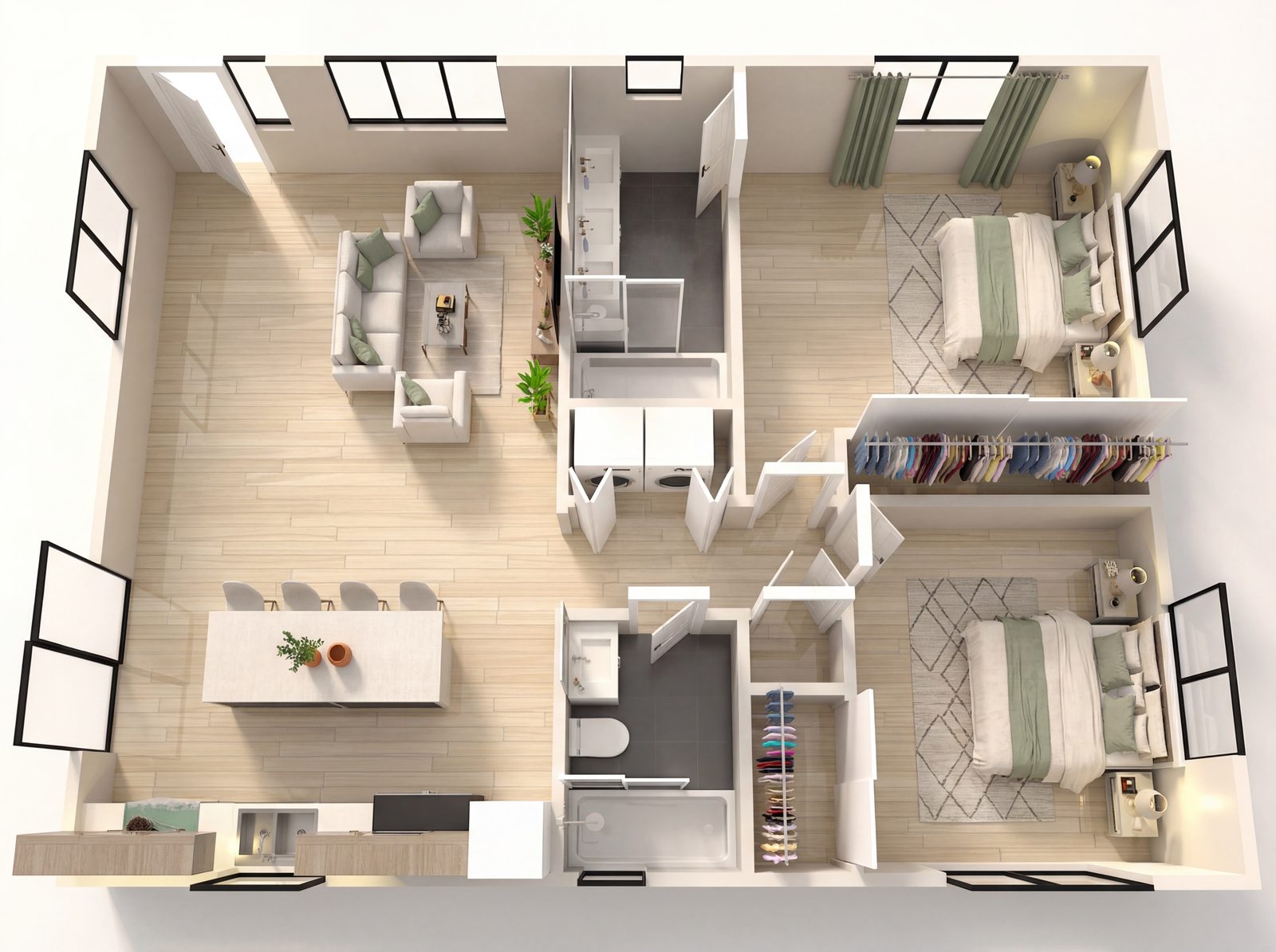

2 Bedroom
2 Bedrooms 600-800 sqft 800+ sqftThe smart separation of bedrooms ensures real privacy between occupants or long-term guests. We particularly love the integrated desk nook, which keeps work clutter out of the main living area.
Attached ADUs · Detached ADUs · Garage Conversions · +2
-
2 Bedroom
2 Bedrooms 800+ sqftThe smart split-suite layout commands premium rent by ensuring privacy between the bedrooms. We included the dedicated laundry and eat-in island so it functions like a true standalone home, not just a guest unit.
Detached ADUs · Internal ADUs · Multi-Family ADUs
-

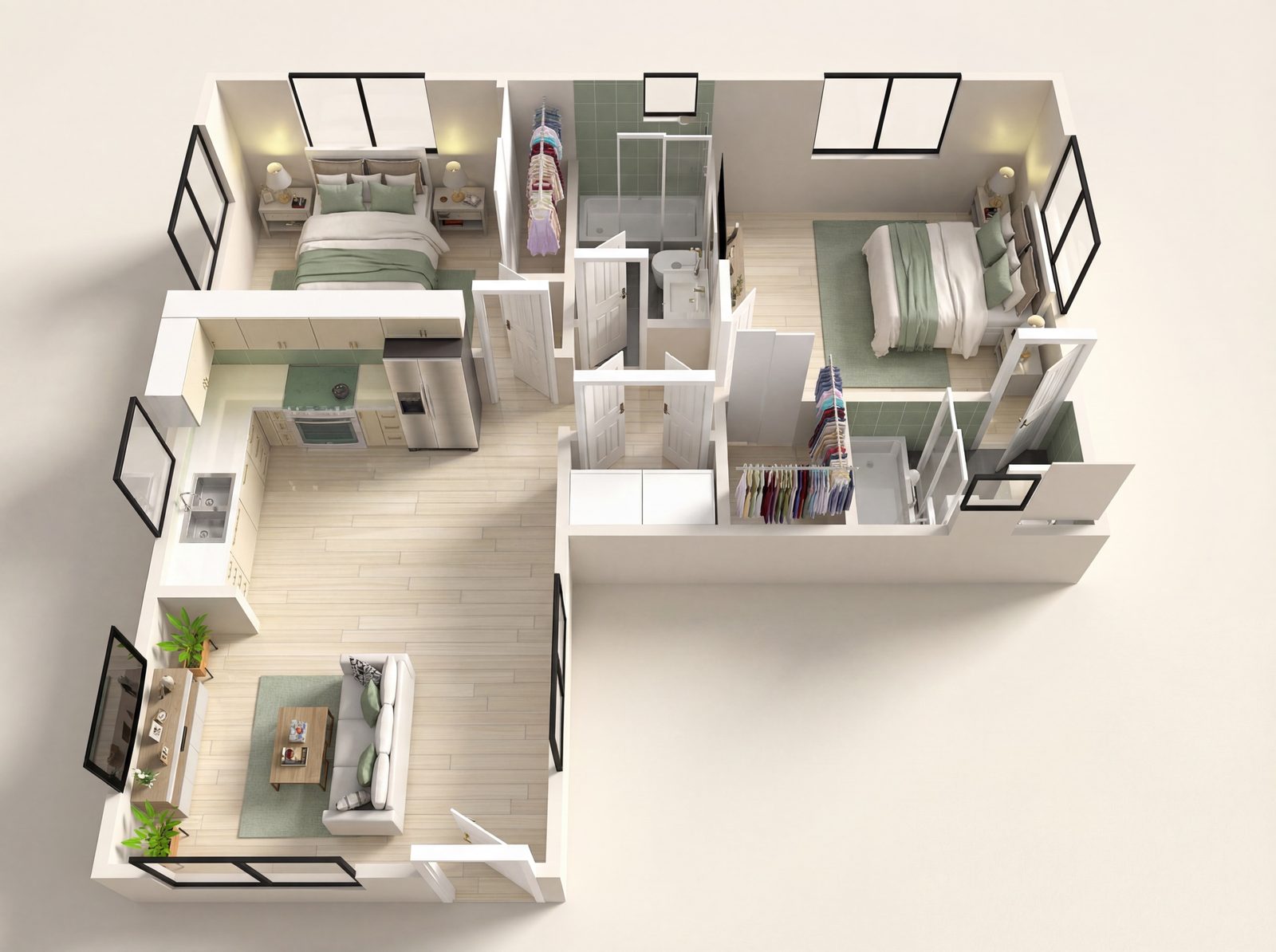

2 Bedroom
2 Bedrooms 600-800 sqft 800+ sqftThe smart L-shaped footprint cleverly separates sleeping zones from the living areas, giving the primary suite real seclusion for long-term renters or visiting family.
Attached ADUs · Detached ADUs · Internal ADUs · +1
-
2 Bedroom
2 Bedrooms 600-800 sqft 800+ sqftThe clever L-shape creates a natural division between the open social spaces and private quarters, maximizing privacy without wasting hallways. It feels significantly larger than its actual footprint.
Attached ADUs · Detached ADUs · Internal ADUs
-
2 Bedroom
2 Bedrooms 600-800 sqftSeparating bedrooms with the central living space ensures acoustic privacy, while dual en-suite baths make this a highly practical layout for premium roommate rentals.
Attached ADUs · Detached ADUs · Garage Conversions · +1
-
2 Bedroom – 2
2 Bedrooms 400-600 sqft 600-800 sqftThe separated bedroom wings with dedicated en-suites grant adult occupants necessary autonomy. It’s a pragmatic, high-yield layout designed specifically for real-world co-living situations.
Attached ADUs · Detached ADUs · Garage Conversions · +1
-

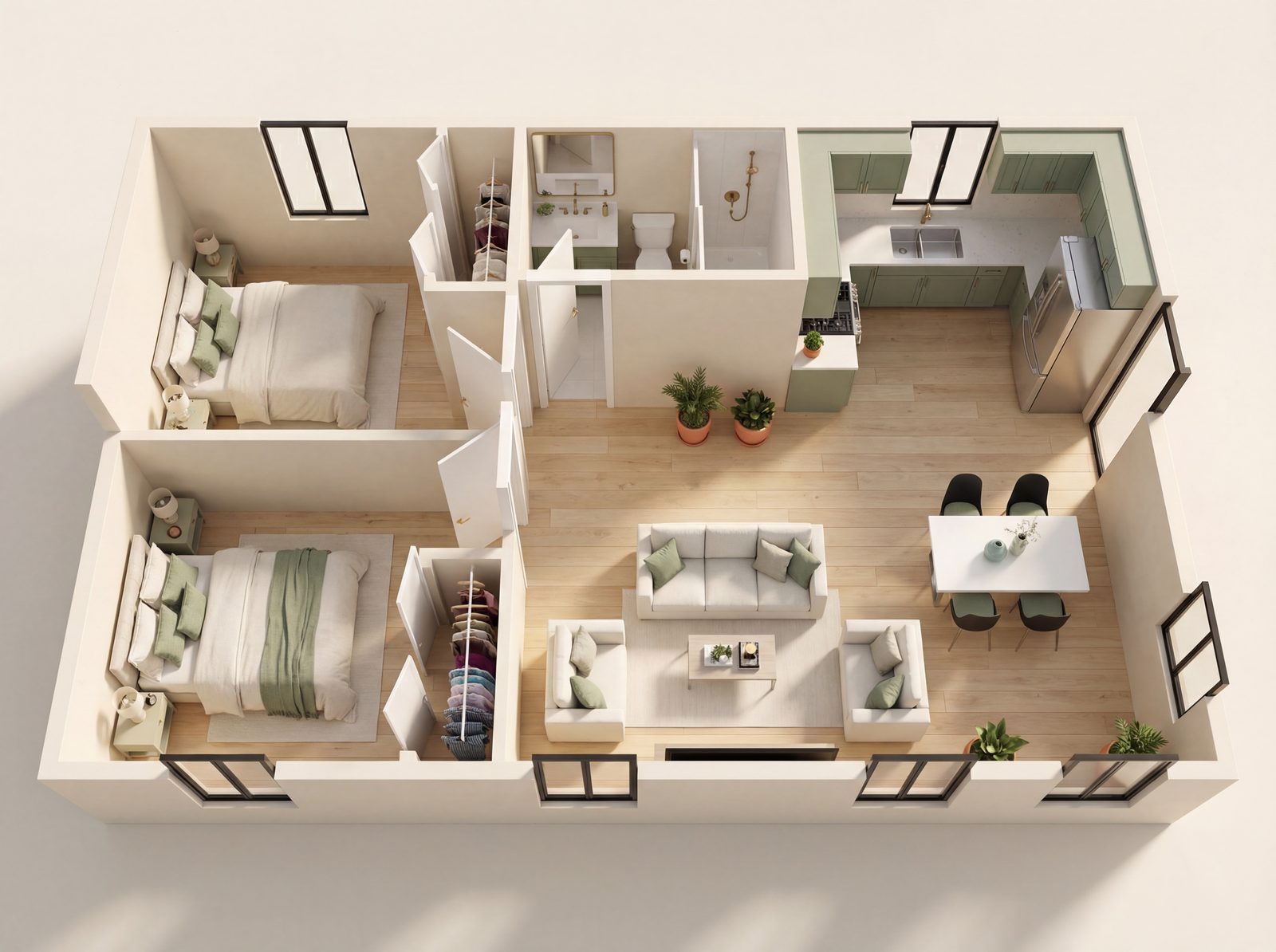

2 Bedroom – 3
2 Bedrooms 400-600 sqft 600-800 sqftThe split-bedroom design and central living area create a highly functional flow, making this an excellent setup for roommates or a dedicated private office spaces.
Attached ADUs · Detached ADUs · Garage Conversions · +1
-

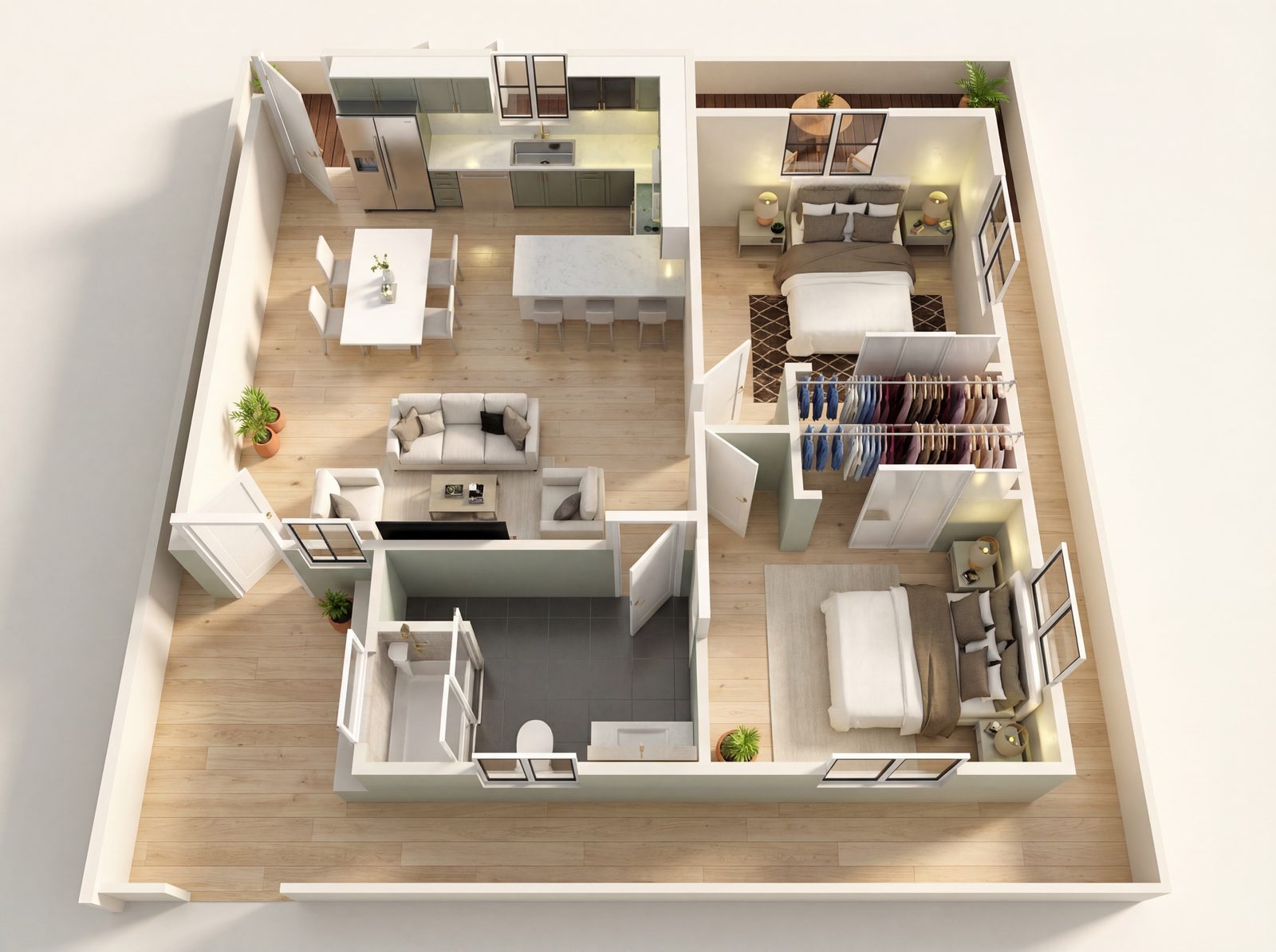

2 Bedroom – 4
2 Bedrooms 400-600 sqft 600-800 sqftThe generous kitchen island and dedicated dining zone are rare for this footprint, creating a highly social living space that feels nothing like a secondary unit.
Attached ADUs · Detached ADUs · Garage Conversions · +1
-

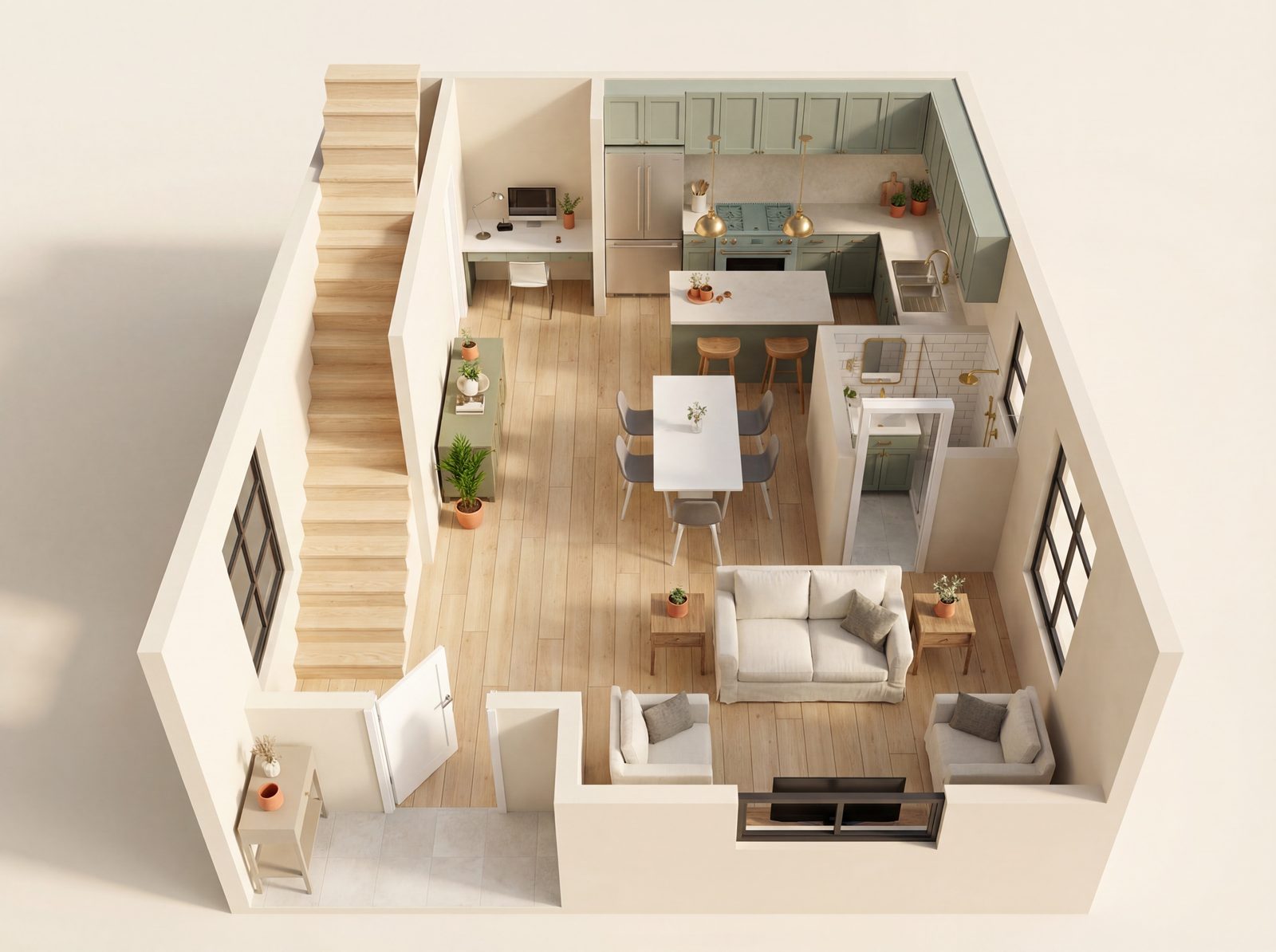

Creative 2-Story 2 Bedroom
2 Bedrooms 400-600 sqft 600-800 sqft 800+ sqftThe dedicated entry vestibule and downstairs powder room keep private life separate from the open communal space. It’s an ideal setup for hosting long-term extended family or securing high-value renters.
Detached ADUs · Garage Conversions · Internal ADUs
-

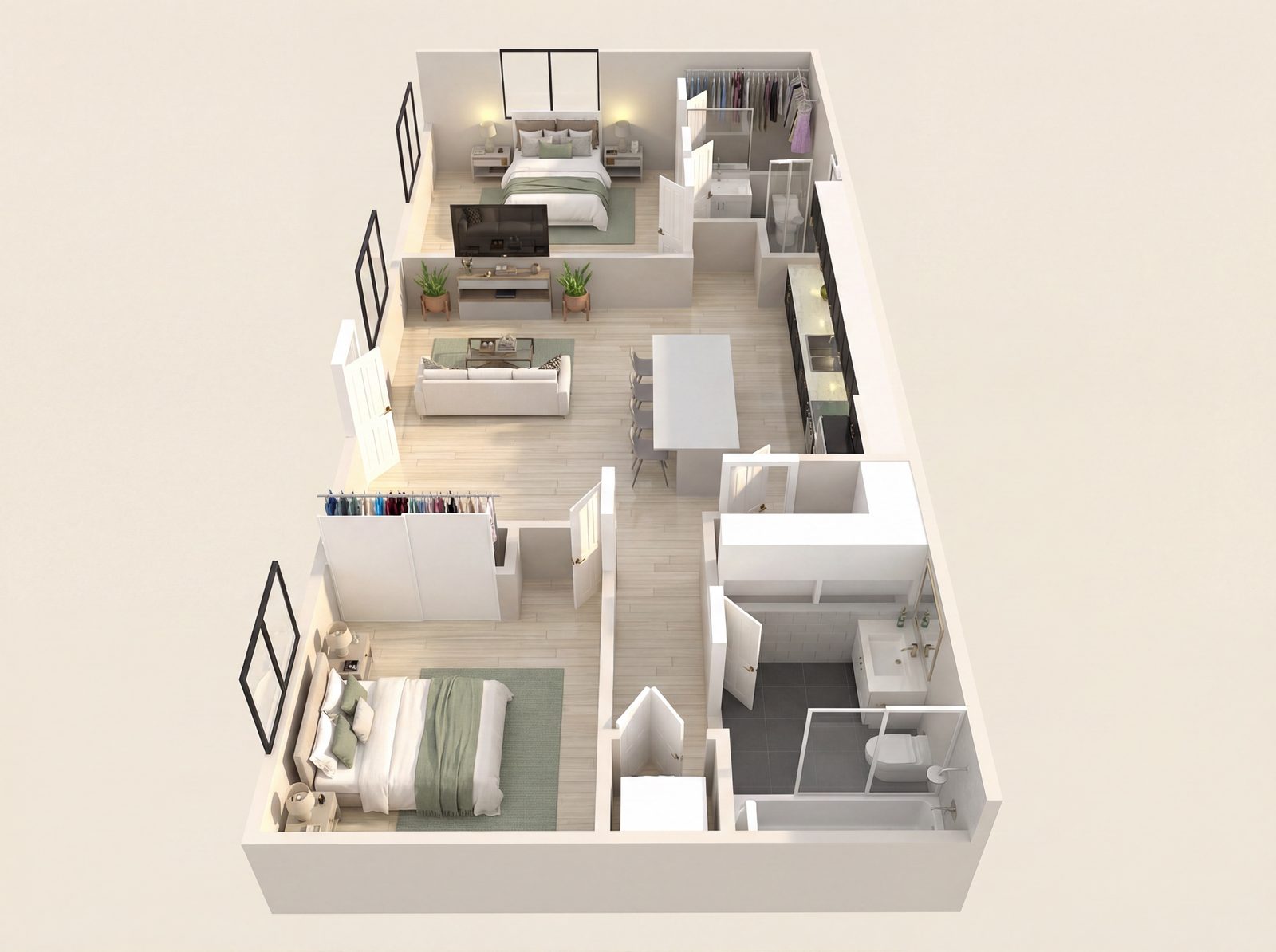

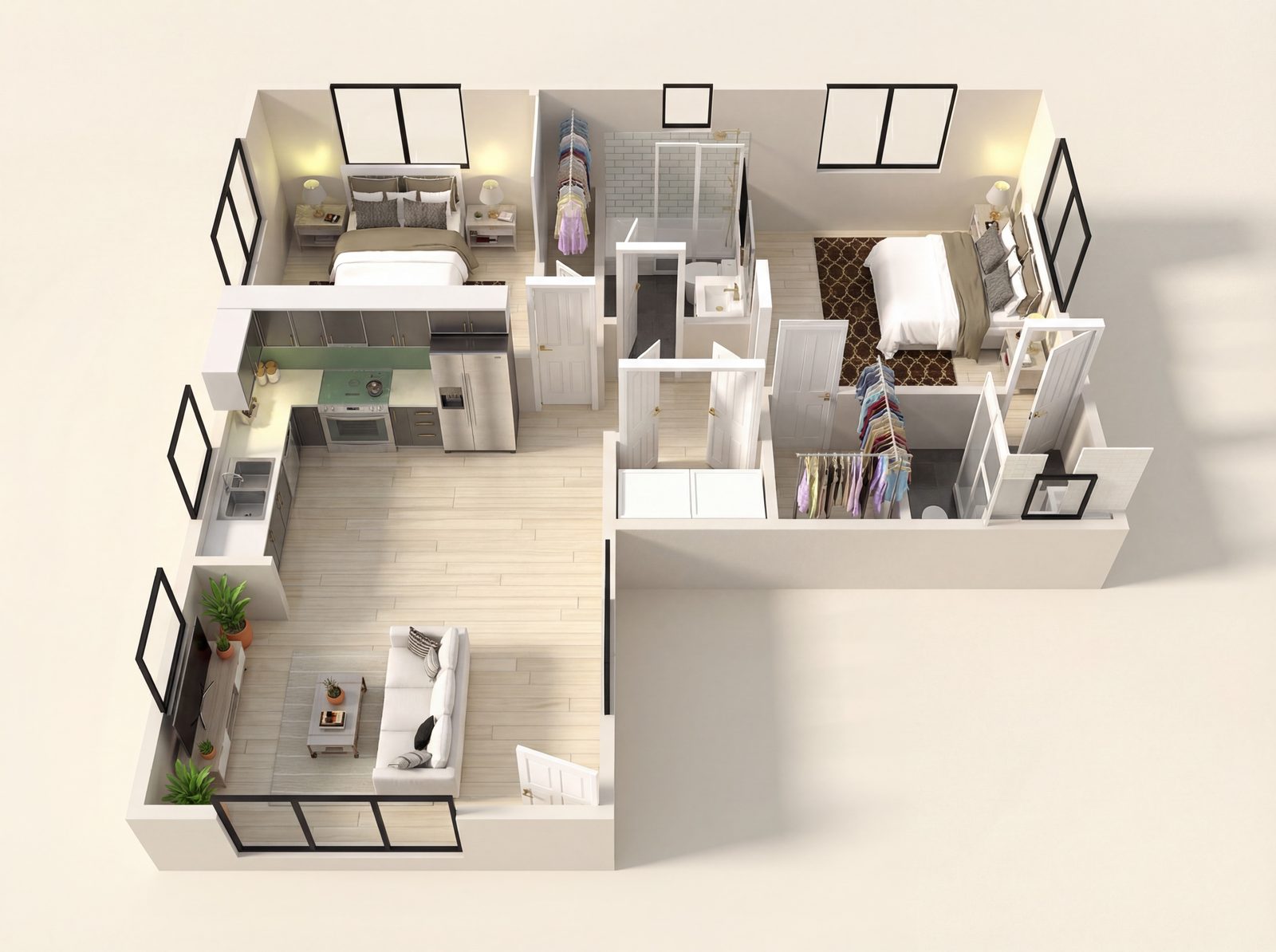

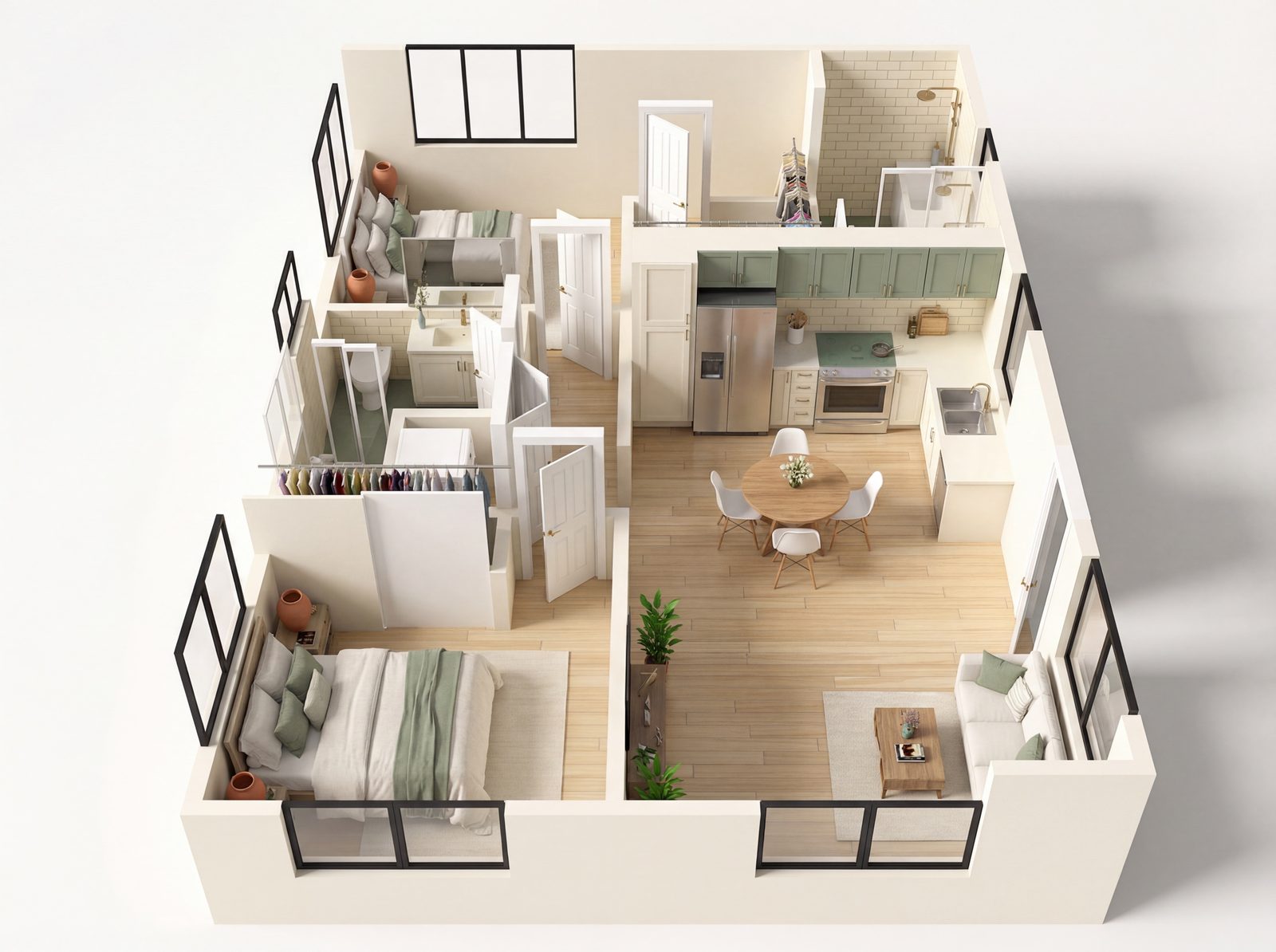

Large 2 Bedroom
2 Bedrooms 600-800 sqft 800+ sqftThe L-shape smartly buffers the bedrooms from social zones, making this a practical configuration for roommates or visiting family. The Jack-and-Jill bath makes every square foot count without sacrificing privacy.
Attached ADUs · Detached ADUs · Internal ADUs · +1
-
Large 2 Bedroom
2 Bedrooms 600-800 sqft 800+ sqftThe split-bedroom layout ensures maximum privacy, making this configuration highly desirable for roommates or multi-generational living. Two full baths mean zero compromises on daily routines.
Attached ADUs · Detached ADUs · Internal ADUs · +1
-

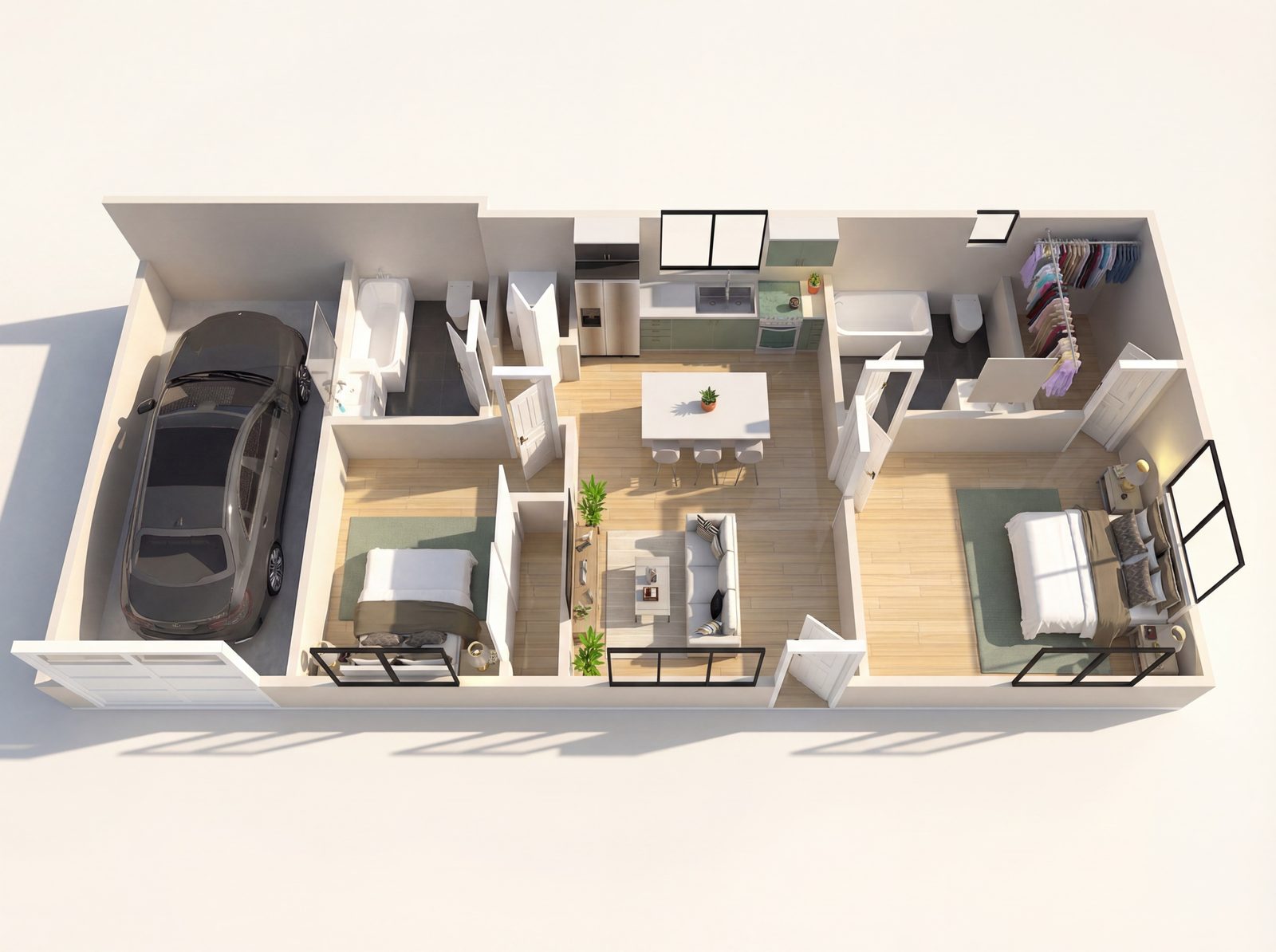

Large 2 Bedroom
2 Bedrooms 600-800 sqft 800+ sqftTrue autonomy in LA requires dedicated parking. This rare configuration delivers an attached garage and two separated suites, making it a highly dignified, long-term solution for aging parents or adult children.
Attached ADUs · Detached ADUs · Garage Conversions
-
Large 2 Bedroom
2 Bedrooms 600-800 sqft 800+ sqftThat massive kitchen island anchors an open-plan living space designed for real entertaining, not just kitchenette cooking. The clever linear layout ensures quiet privacy in the two-bedroom wing.
Attached ADUs · Detached ADUs · Internal ADUs · +1
-
Large 2 Bedroom
2 Bedrooms 800+ sqftBy placing bedrooms at opposite ends, this plan ensures real privacy for roommates or a dedicated home office separate from the sleeping quarters. The long kitchen island anchors central living without eating up square footage.
Attached ADUs · Detached ADUs
-
Spacious 2 Bedroom
2 Bedrooms 600-800 sqftThe equal-sized bedrooms separated by the bath create necessary privacy for roommates or a small family. An efficient open-plan kitchen with island seating maximizes the shared living area.
Attached ADUs · Detached ADUs · Garage Conversions · +1
-

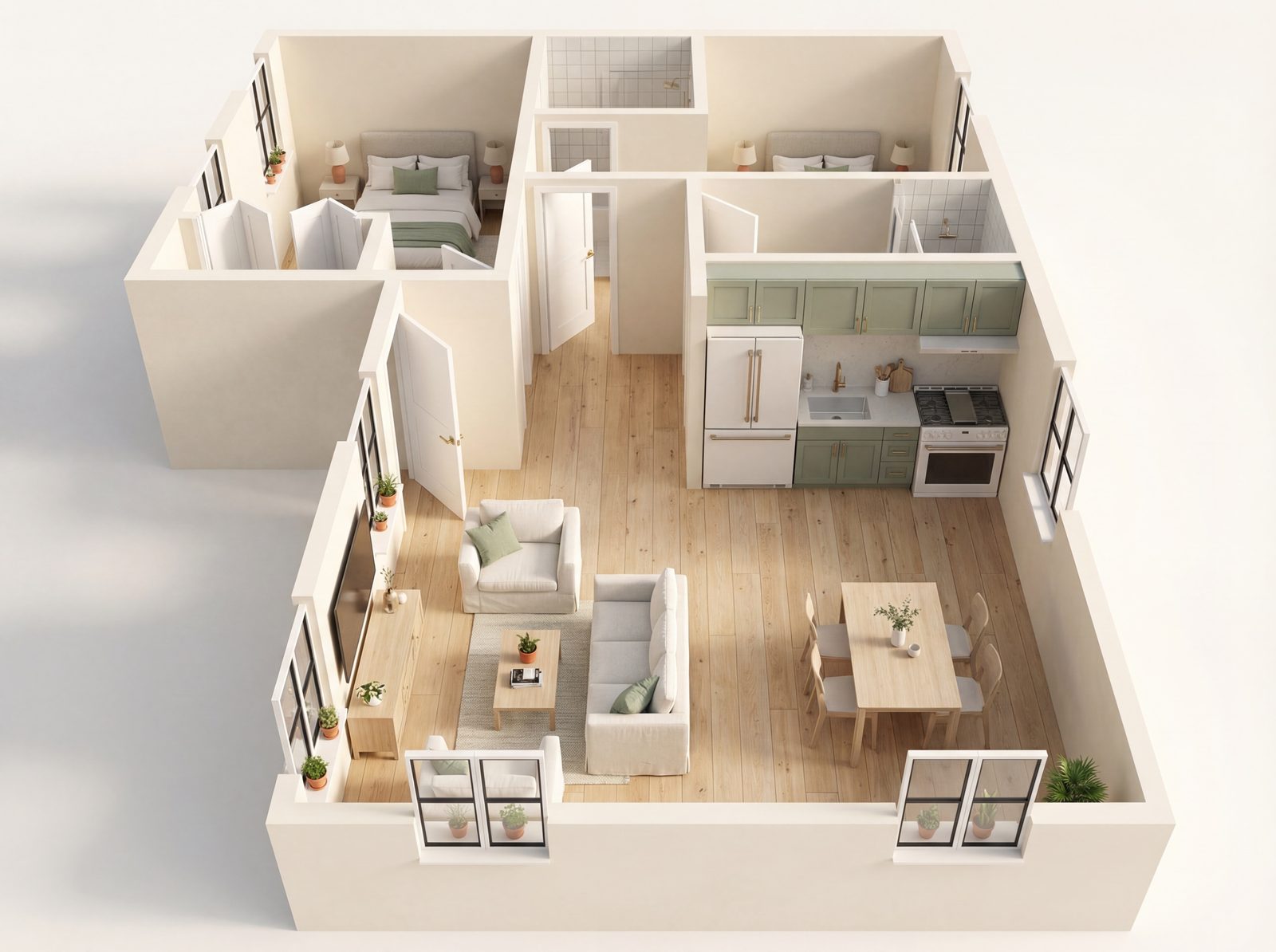

Spacious 2 Bedroom – 2
2 Bedrooms 400-600 sqft 600-800 sqftThis clever layout buffers the two bedrooms from the open-plan living area, creating real auditory privacy that makes co-living or long-term family stays sustainable.
Attached ADUs · Detached ADUs · Garage Conversions
-
3 Bedroom
3 Bedrooms 600-800 sqft 800+ sqftWith three private bedrooms and massive walk-in closets, this layout handles a full family or multigenerational living without compromise. Every foot is dedicated to functional, highly livable space.
Attached ADUs · Detached ADUs
-
Creative “L-Shaped” 3 Bedroom
3 Bedrooms 600-800 sqft 800+ sqftA rare true three-bedroom configuration that doesn't sacrifice flow. The L-shape intelligently separates the sleeping wing from living areas, offering genuine privacy for a grown family or a high-occupancy rental setup.
Detached ADUs · Garage Conversions · Internal ADUs
-

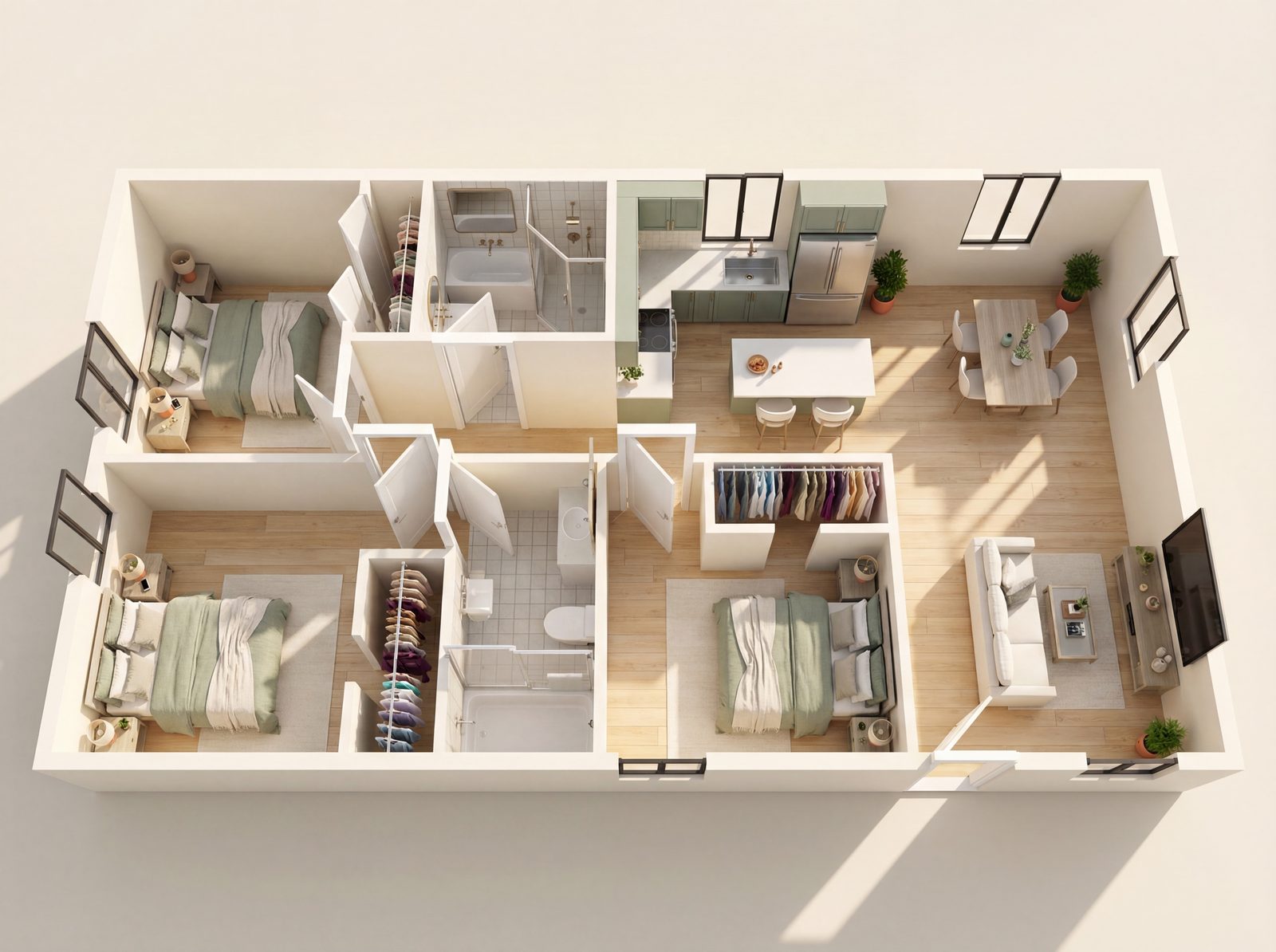

Large 3 Bedroom
3 Bedrooms 600-800 sqft 800+ sqftThis layout works incredibly hard, packing three very private bedrooms and two baths into an efficient footprint. It’s a legitimate full-sized home designed for the backyard.
Attached ADUs · Detached ADUs
-

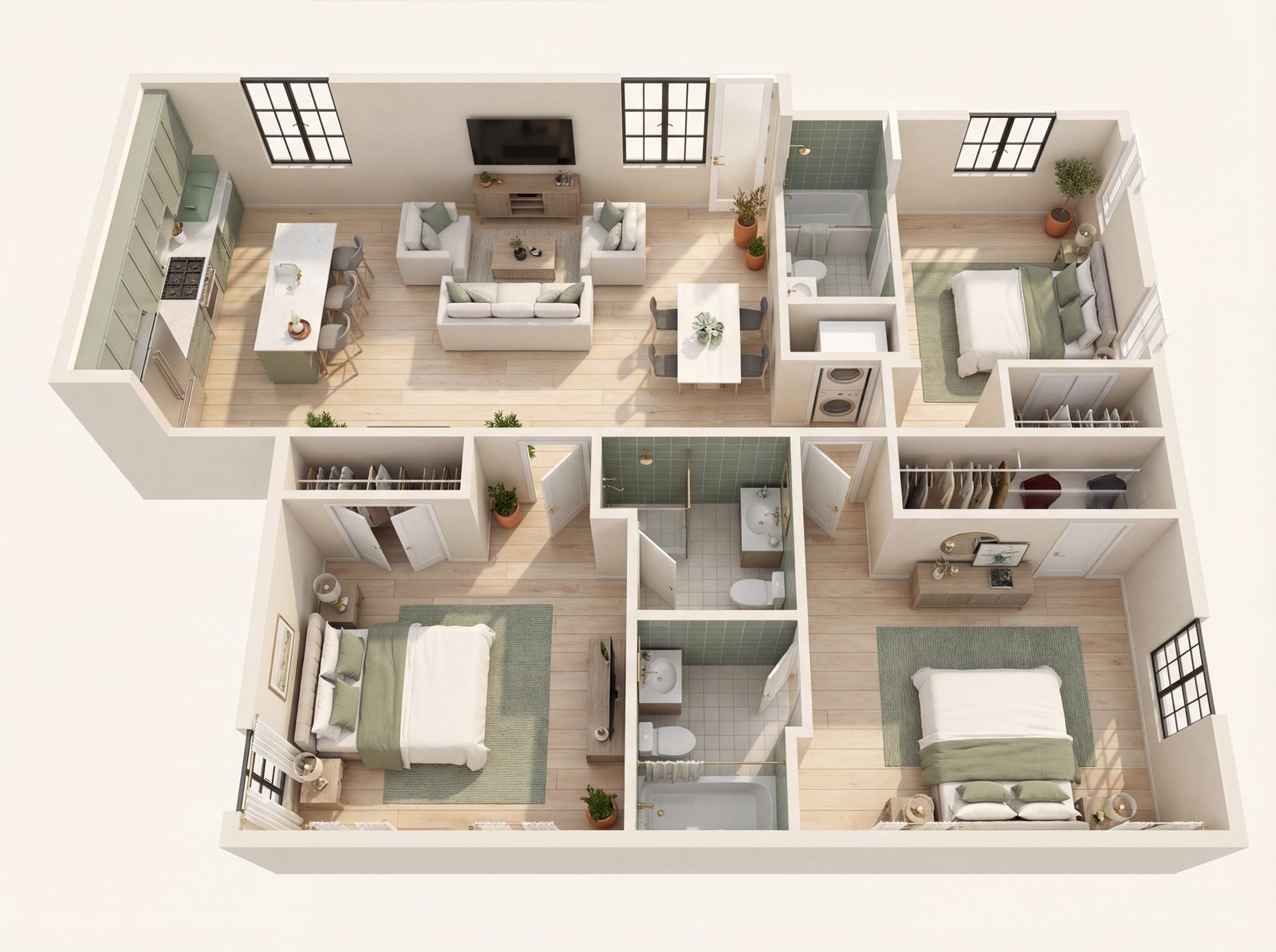

Large 3 Bedroom – 2
3 Bedrooms 600-800 sqft 800+ sqftThe smart L-configuration zones sleeping quarters away from social spaces for genuine privacy. It’s a legitimate home designed for long-term family living or securing high-value tenants who need true separation.
Attached ADUs · Detached ADUs · Internal ADUs
-

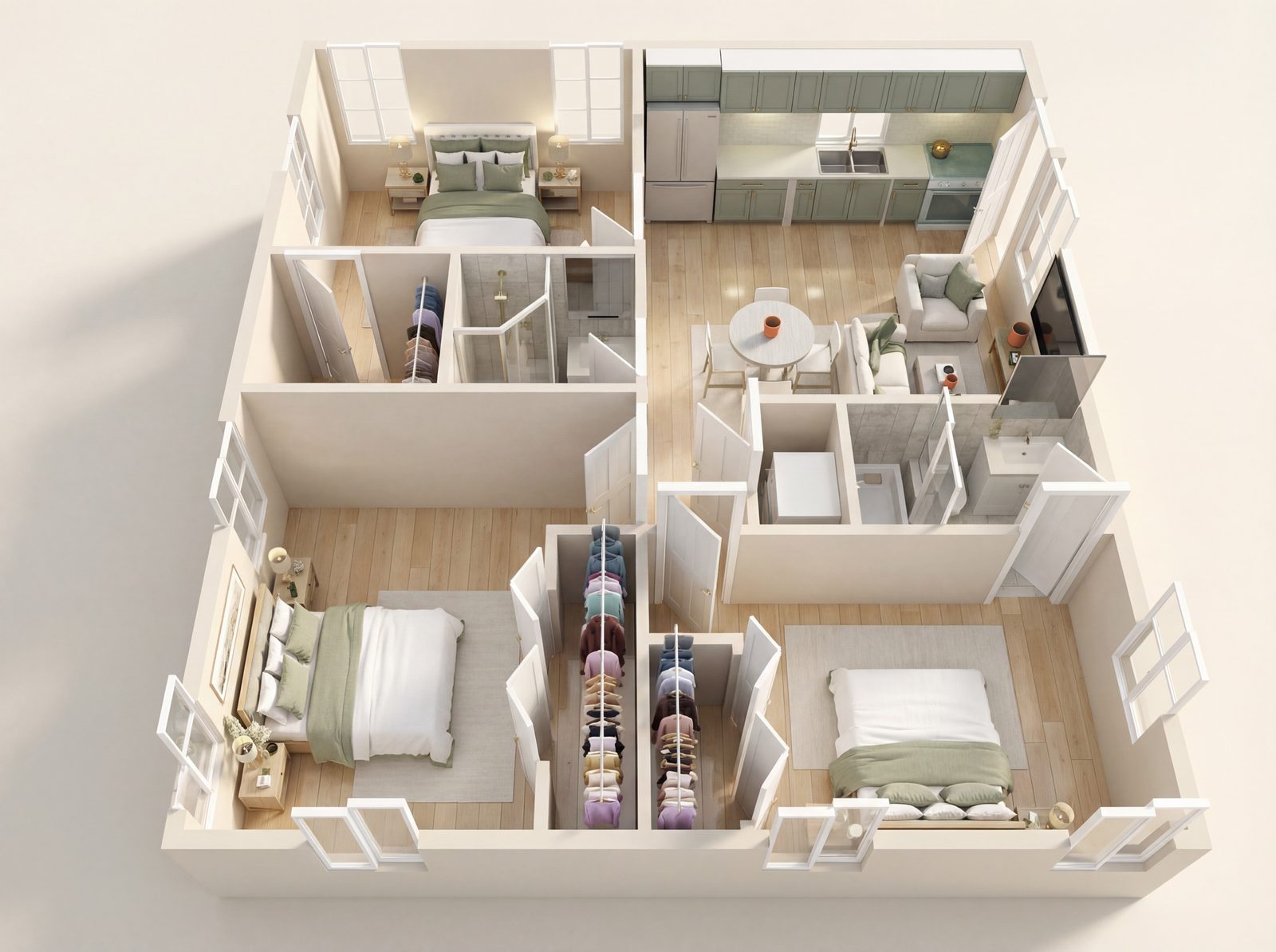

Large 3 Bedroom – 3
3 Bedrooms 800+ sqftThis layout maximizes every foot, delivering three separate sleeping zones and two full baths. It creates a complete, viable second home designed specifically for long-term occupancy over short stays.
Attached ADUs · Detached ADUs · Multi-Family ADUs
-

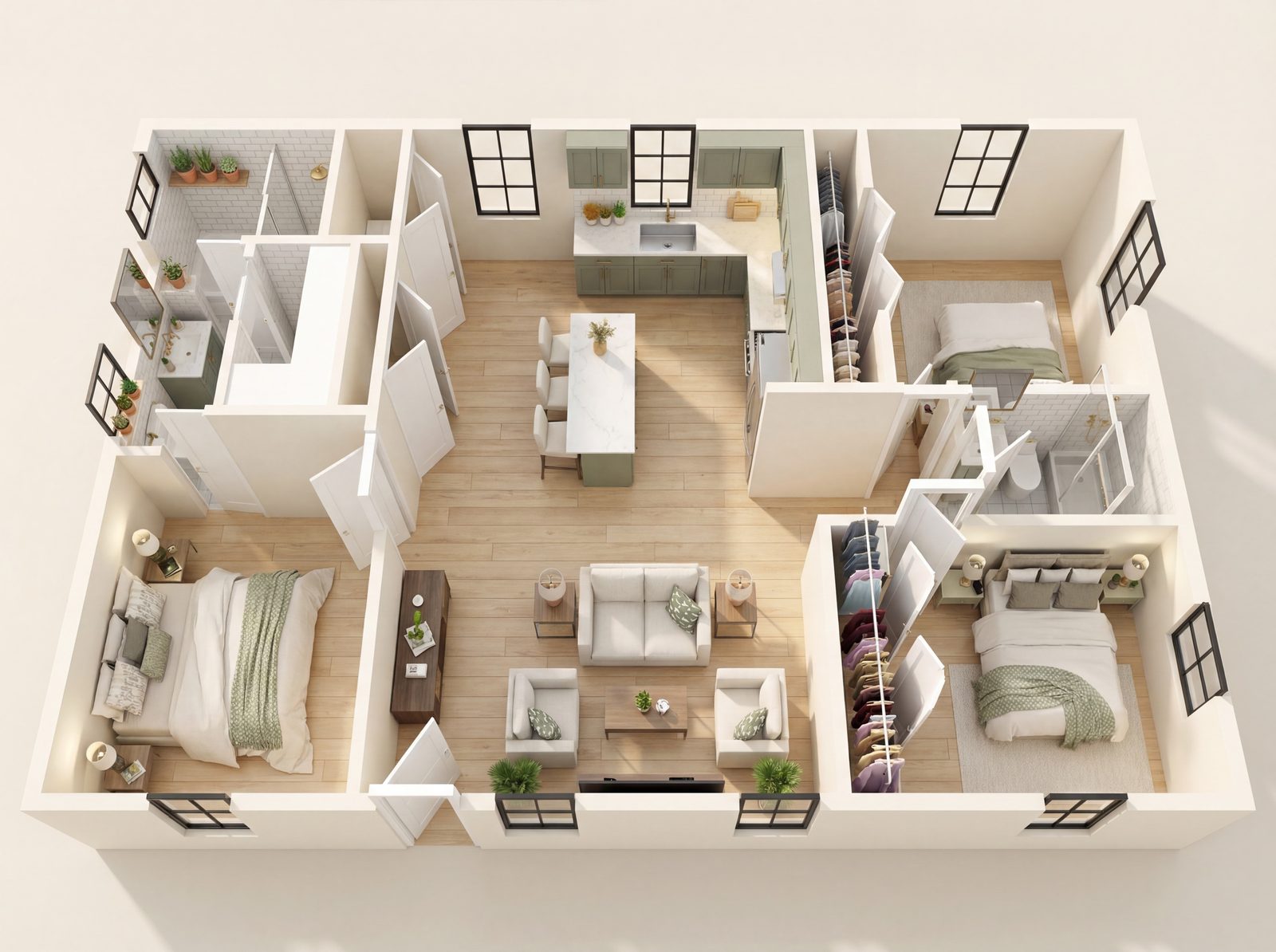

Wide Open 3 Bedroom
3 Bedrooms 800+ sqftThis hard-to-find three-bedroom configuration cleverly separates the primary suite from the others for real privacy. It’s designed to feel like a substantial, independent home rather than just an auxiliary backyard space.
Attached ADUs · Detached ADUs · Garage Conversions
-
Wide Open 4 Bedrooms
4 Bedrooms 800+ sqftThis rare four-bedroom configuration redefines efficiency, using a central living zone to separate sleeping wings for maximum privacy. It’s a powerhouse layout for dense multigenerational living or a high-yield rental asset.
Attached ADUs · Detached ADUs · Internal ADUs
Nothing matches yet.
Try removing a filter, or browse all 39.
Not sure which plan fits?
Ask us which plans fit your lot
Lot size, setbacks and where the utilities run decide what you can build. Send us your ZIP code and we'll tell you which plans could work for an ADU on your property.
- ✓ A reply within 1 business day
- ✓ Every plan can be adjusted to your lot
- ✓ No obligation
Choosing a plan
How to choose an ADU floor plan
The right plan depends on your lot, who will live in the ADU and how much you want to build. These are the questions we work through with homeowners before anything goes to the city.
Start with your lot
Setbacks, the size and shape of your backyard, existing structures and where your utilities run all limit what fits. A long, narrow lot suits a different layout than a wide, shallow one. Size limits come from state law and your city's rules, and those rules change, so we confirm what your lot allows before you commit to a plan.
Decide who the ADU is for
A rental, a home for a parent, a place for an adult child and a home office each call for a different layout. A rental usually benefits from its own entrance and laundry. A unit for an aging parent may need wider doorways and a step-free shower. A home office can be designed to become a rental later.
Choose the bedroom count, then the size
Most of our plans are 1- or 2-bedroom units between 400 and 800 sq ft. Studios run smaller, and the 3- and 4-bedroom plans start in the 600 to 800 sq ft range and go up from there. You can browse by size or bedrooms below.
Look closely at the layout
A kitchen and bathroom placed close together share plumbing, which keeps the budget down. Check the storage, where the windows go, and how the ADU's windows and entry face the main house, since that decides how private both homes feel.
Plan for the cost
Construction cost depends mostly on size and finish level. Pick a size and finish in our ADU cost calculator for a starting estimate, and we confirm a fixed quote for your property.
Sizes
ADU plan sizes at a glance
| Size | Layouts | Plans | Browse |
|---|---|---|---|
| 350 to 400 sq ft | studio to 1-bedroom | 5 | 500 sq ft plans |
| 400 to 600 sq ft | studio to 2-bedroom | 21 | 500 sq ft · 600 sq ft |
| 600 to 800 sq ft | 1-bedroom to 3-bedroom | 20 | 700 sq ft · 800 sq ft |
| 800 sq ft and up | 2-bedroom to 4-bedroom | 18 | 900 sq ft · 1,000 sq ft · 1,200 sq ft |
Plans by ADU type: detached, attached, garage conversions, internal and multi-family.
Process
From floor plan to finished ADU
- 1. Pick a starting plan. Choose one of the 39 plans above, or a few you like.
- 2. Fit it to your lot. We adjust the layout, size and orientation to your property and how you'll use the ADU.
- 3. Permits. We prepare the permit package and answer the city's plan-check corrections. A well-prepared package typically moves through plan check in weeks per correction cycle rather than months. Our permit roadmap walks through each step.
- 4. Construction. The same team builds it, so you aren't coordinating separate designers and builders. See our completed ADU projects.
ADU floor plan questions
Can I change one of these ADU floor plans?
Yes. Every plan is a starting point. We adjust the layout, size and orientation to fit your lot and how you plan to use the ADU.
How do I know which ADU plan fits my lot?
It depends on your setbacks, the shape of your lot, existing structures and where your utilities run. On a free consultation we look at your property and tell you which plans work.
What sizes do your ADU plans come in?
From 350 sq ft studios to plans of 1,200 sq ft and up with as many as 4 bedrooms. Most of our 39 plans fall between 400 and 800 sq ft.
How much does it cost to build one of these plans?
Construction cost depends mostly on the size and finish level you choose. Our ADU cost calculator gives you a starting estimate in about a minute, and we confirm a fixed quote after seeing your property.
Can a floor plan work as a garage conversion?
Some can. Plans tagged Garage Conversions can be adapted to an existing garage, depending on its size and condition.
Are these ADU plans pre-approved by the city?
We prepare the plans and permit package for your specific lot. Los Angeles also runs a Standard Plan Program with pre-approved ADU designs, which our pre-approved ADU plans page explains.
Need help choosing a floor plan?
Book a free consultation with our LA-based ADU design team and we'll match a plan to your lot, budget, and goals.
